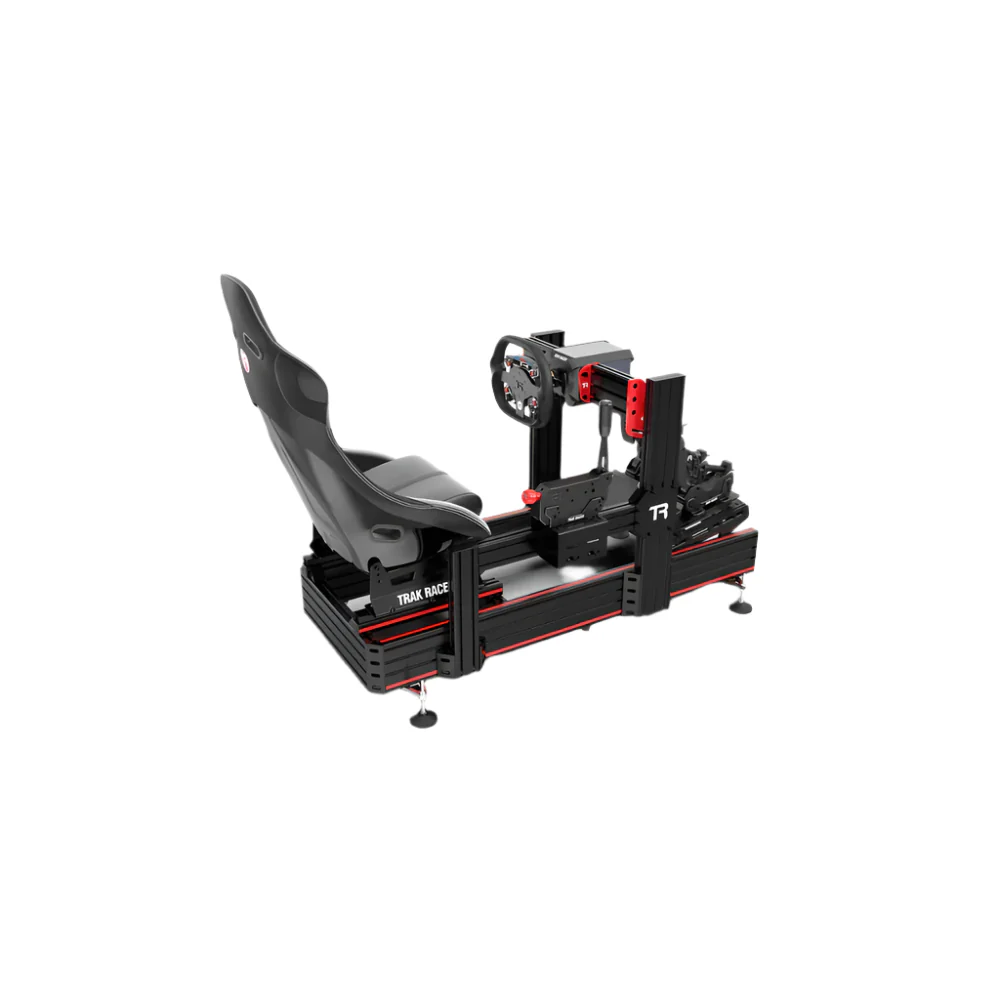

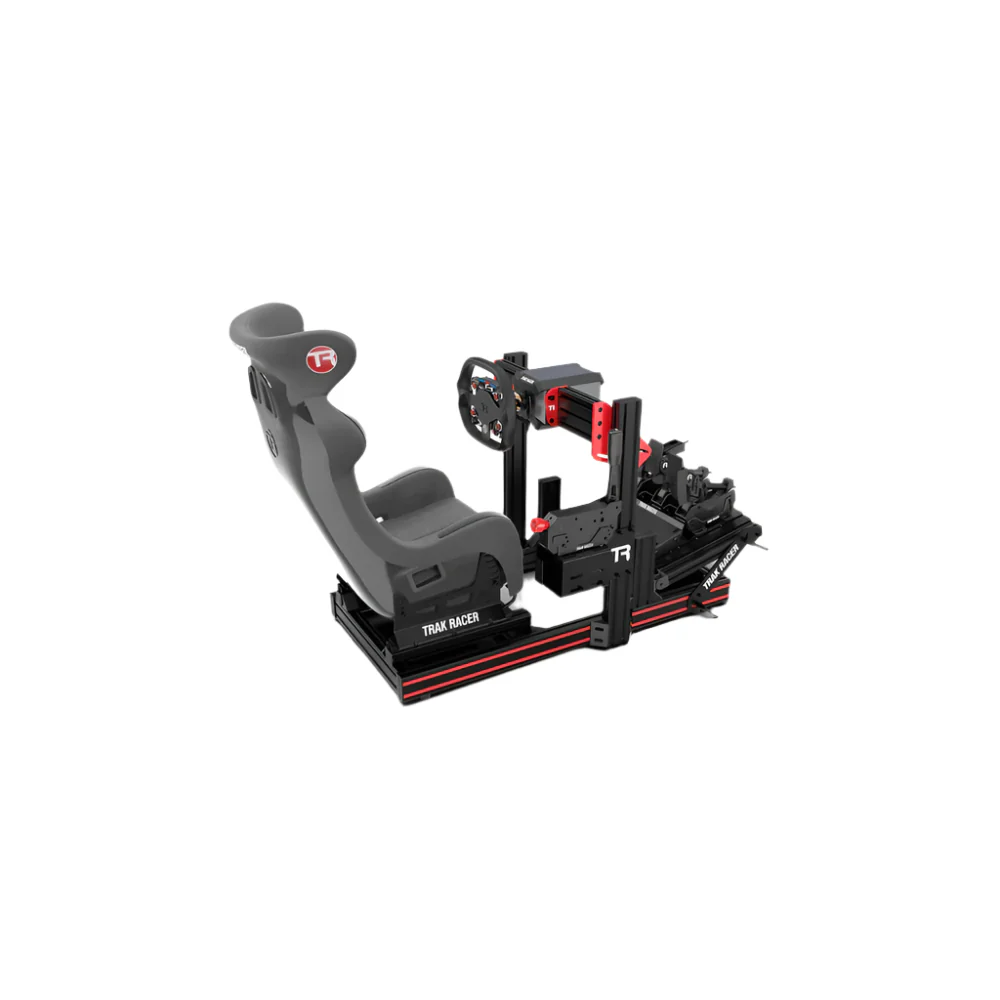

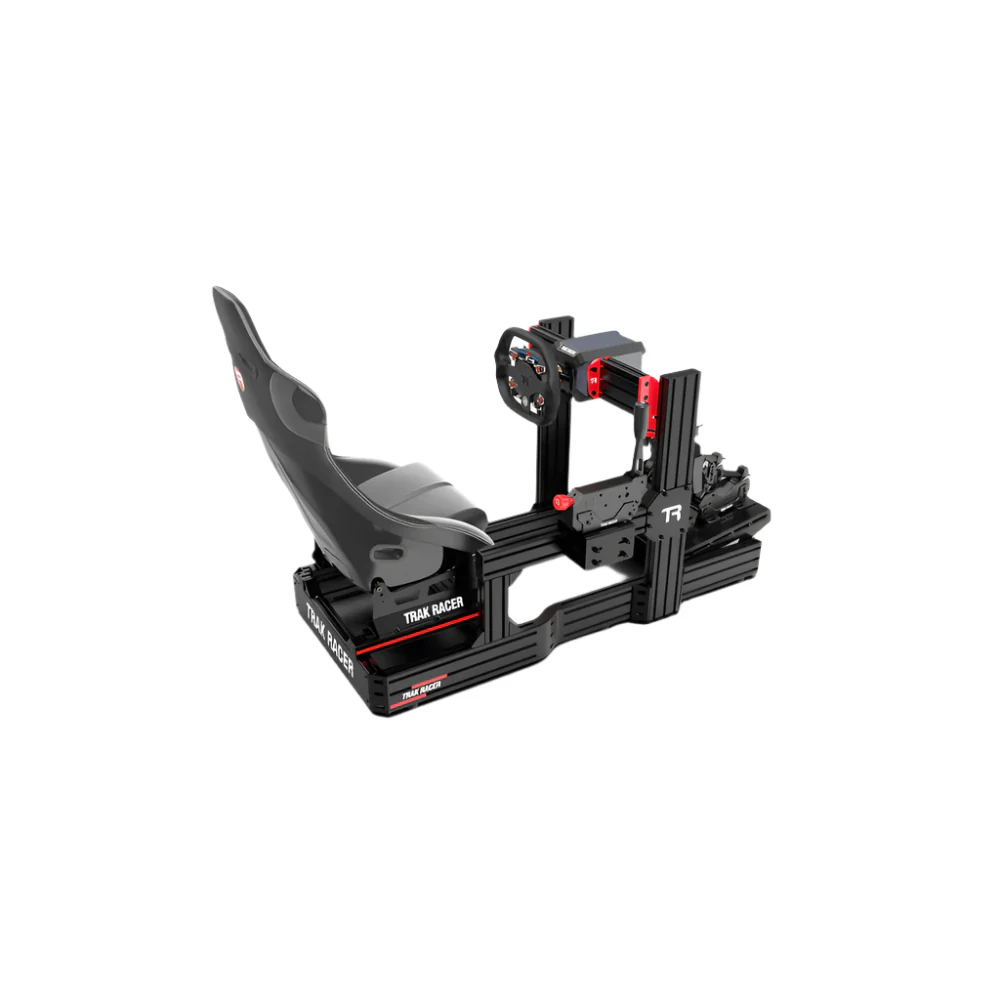

TR ONE V2 Base Kit and Direct Mount for Fanatec Direct Drive Wheelbases

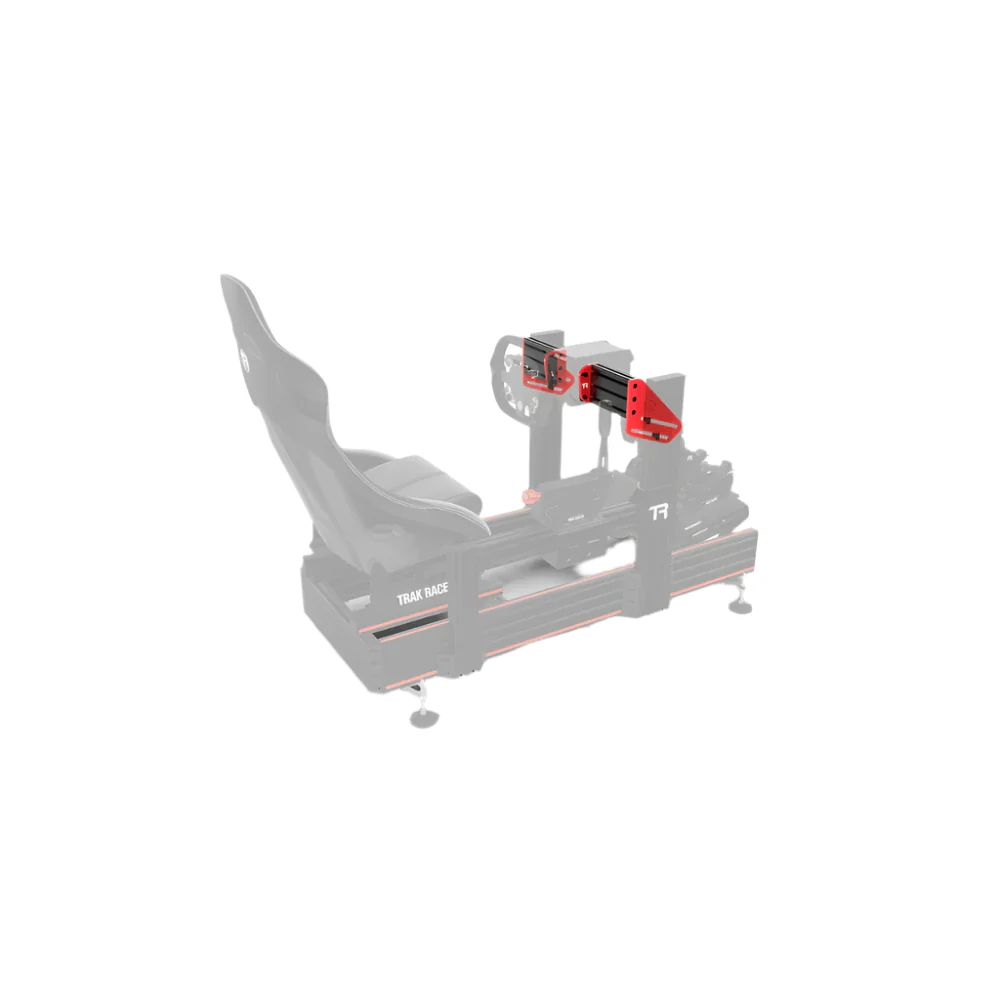

The design of the aluminium plates allows for angle and distance adjustment. The base kit (Part Number: TR80-NWMA) consists of 2 x High-Quality 80x40mm Aluminium Profiles and 4 Red Anodised Aluminium Plates. Optional wheel mounts include a wheel deck and direct-drive front mounting plate - but this list will expand as more wheelbase brands become available. The plates themselves are extremely rigid and have a lot of adjustment for angle and forward/backwards fine-tuning - to get a perfect position!
5 Year Warranty
Official Racing Simulator of Alpine F1 Team and Official Flight Simulator of Airbus Aircraft
Since 2008, Trak Racer has been favored by professional drivers/pilots, game centers, massive gaming events, and event hire companies. By offering the highest quality gear in the industry, Trak Racer has collaborated with big-name brands such as, but not limited to, Alpine F1, Airbus, Xbox, Ubisoft, Sony, Castrol, Accord Hotels, and more.
If you're looking to partner with Trak Racer please get in touch.
FEATURES:
Angle Adjustment: Fully Adjustable Mount with up to 12° degree tilt angle PLUS greater angle adjustments of the outer plates
Material: Anodised Red Aluminium Plates, Extruded Aluminium Profile, and Carbon Steel
Rig Compatibility: This part is compatible with Trak Racer Extruded Aluminium Rigs and other DIY Builds.
Not Compatible with Trak Racer TR80-LITE due to the wheel uprights only being 660mm/26" tall (compared to 780mm/30.7" on the TR80, TR120, and TR160).
Total Wheel Mount Width (with Wheelbase added): 580mm/22.83"
Specifications:
Side Plate Thickness/Material: 2 x 10mm/Aluminium - Anodised Red
Aluminium Profile Size/Length: 2 x 180mm 40x120mm Extruded Aluminum Profile
Internal Plate Thickness/Material (without brackets): 2 x 10mm/Aluminium - Anodised Red
Internal Fanatec Base Plate: 4 x 5mm (2 each side for CSL DD and 1 each side for Podium - Included)
Direct Drive Mount for Fanatec Compatibility:
- Fanatec Podium DD1/DD2 - M8 screws supplied in kit
- Fanatec GT DD PRO - requires M6 Screws as supplied by Fanatec for mounting
- Fanatec CSL DD- requires M6 Screws as supplied by Fanatec for mounting
- Clubsport DD, Clubsport DD+
Contact us if your product is not listed
