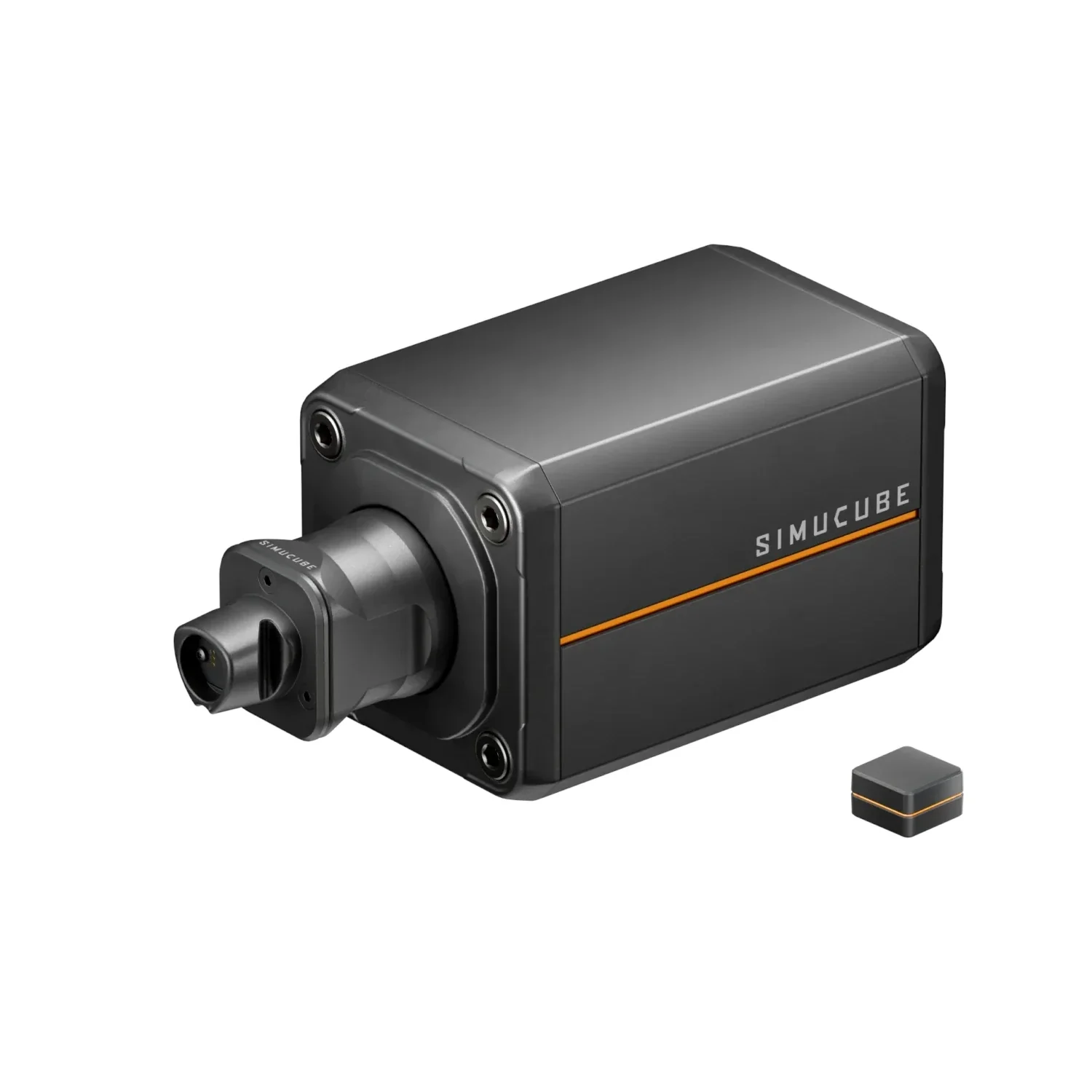

Simucube 3 Pro (25Nm)

Silent Precision  |  Telemetry-Driven Feedback  |  Redesigned Motors

A Higher Standard. A wheelbase built the right way.

• Precise, smooth, industry-leading direct drive force feedback (25 Nm)
• Industrial-grade servo motors engineered exclusively for Simucube
• Enhanced detail – telemetry‑based effects like ABS, RPM, and road texture
• Completely re-engineered the control algorithm for maximum accuracy and silent performance
• Front & bottom mounting


Simucube 3 is the new flagship direct drive force feedback wheelbase – the engine that turns steering from an accessory into a professional racing instrument, as close as sim racing gets to a real race car.

Simucube 3 delivers even more precise, smooth, industry-leading force feedback – with easier configuration, and exceptionally efficient premium industrial-grade servo motors engineered exclusively for Simucube. Push with everything you’ve got. It will never hold you back.

Note! One Simucube Link Hub is required to operate. If you do not own Simucube Link Hub, please choose the option “Including Simucube Link”.

Simucube 3 Pro Specifications:

Max torque: 25 Nm
Motor: High response speed, Direct drive optimized SPM motor
Warranty: 3 years
Control box: Included
Mounting holes: Front & bottom
Dimensions incl. Link Quick Release: 135x135x303 mm
Weight: 11.0kg
Power supply: 360 W (450 W peak)
Angle sensor: 23-bit absolute (8 mil. steps)
Simucube Link Hub (must purchase if you DON'T own one): Excluded

What's included?

Wiring Example:

Simucube 3 Only:

Simucube 3 + Other Link Hub Devices (eg Active Pedals):
