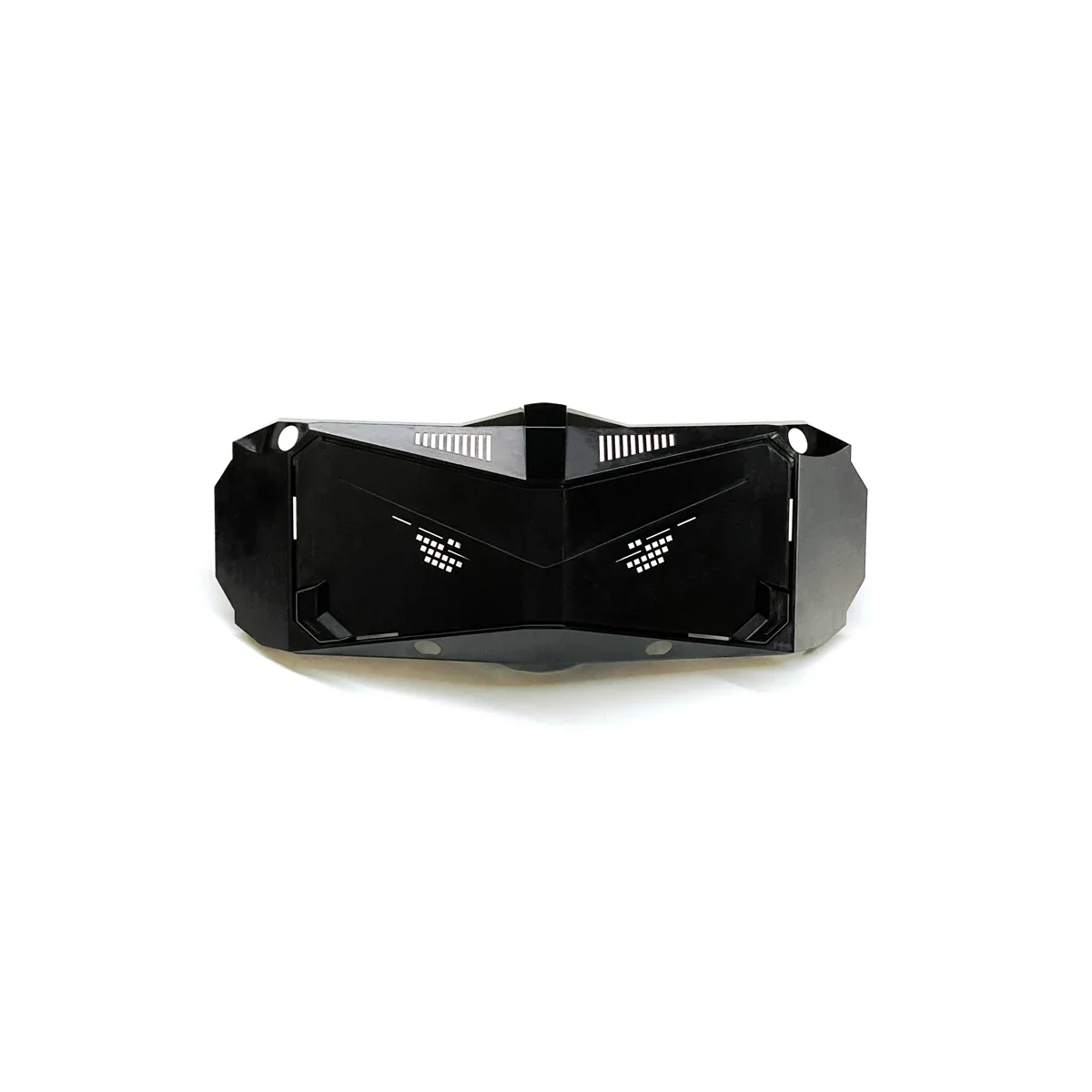

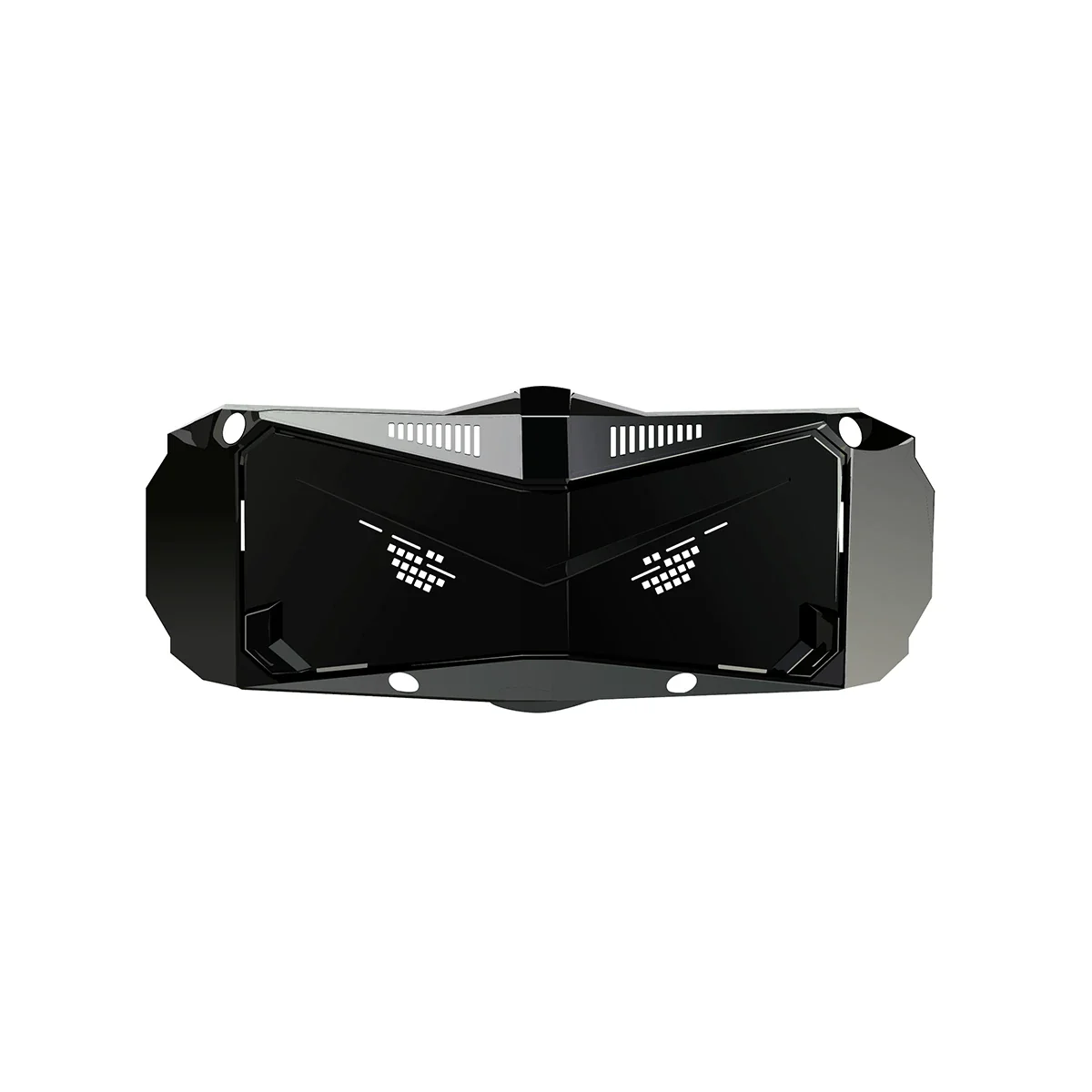

Pimax Crystal/Crystal Light Lighthouse Faceplate

The Pimax Crystal Lighthouse Faceplate allows users to use SteamVR’s base stations for tracking instead of Crystal’s default inside-out tracking, as well as base station tracked controllers & accessories such as bodytrackers.

With the Lighthouse faceplate, users can choose to use either Crystal’s inside-out tracking or use SteamVR’s base station ecosystem. In the future, an MR see-through faceplate is also planned.

1. Up to 10m x 10m using four SteamVR Base Station 2.0.

2. Up to 3.5m x 3.5m with two Steam Base Stations, Pimax Crystal Lighthouse Faceplate, and Pimax Crystal headset.

3. Up to 5m x 5m with two SteamVR Base Station 2.0, Pimax Crystal Lighthouse Faceplate, and Pimax Crystal headset.

4. Base Stations are required and sold separately. Pimax Crystal Lighthouse Faceplate supports both  SteamVR Base Station 1.0 and 2.0. It Requires 2 or above base stations.

5. Pimax Crystal Lighthouse Faceplate is also compatible with Pimax Sword Controllers/Valve Index Controllers/HTC VIVE Controllers and trackers. Controllers are required and sold separately.

6. Cannot use Pimax Crystal Standard Controllers while using Pimax Crystal Lighthouse Faceplate.

Key features of the Lighthouse Faceplate:

Exceptional precision tracking with sub-millimeter accuracy

Compatibility with SteamVR base station tracking, SteamVR controllers and relevant peripherals such as bodytrackers



---

Compatibility List

Device	Crystal Default Configuration	Upgraded to Lighthouse Faceplate
	Inside-out tracking (no need for Base Station)	SteamVR Base Station 1.0	SteamVR Base Station 2.0
Default Crystal controllers	Supported	Not supported	Not supported
Pimax Sword controllers	Not supported	Supported	Supported
Index Knuckles controllers	Not supported	Supported	Supported
Vive controllers	Not supported	Supported	Supported
Vive tracker (1.0/2.0/3.0)	Not supported	Supported	Supported
Tundra tracker	Not supported	Supported	Supported
