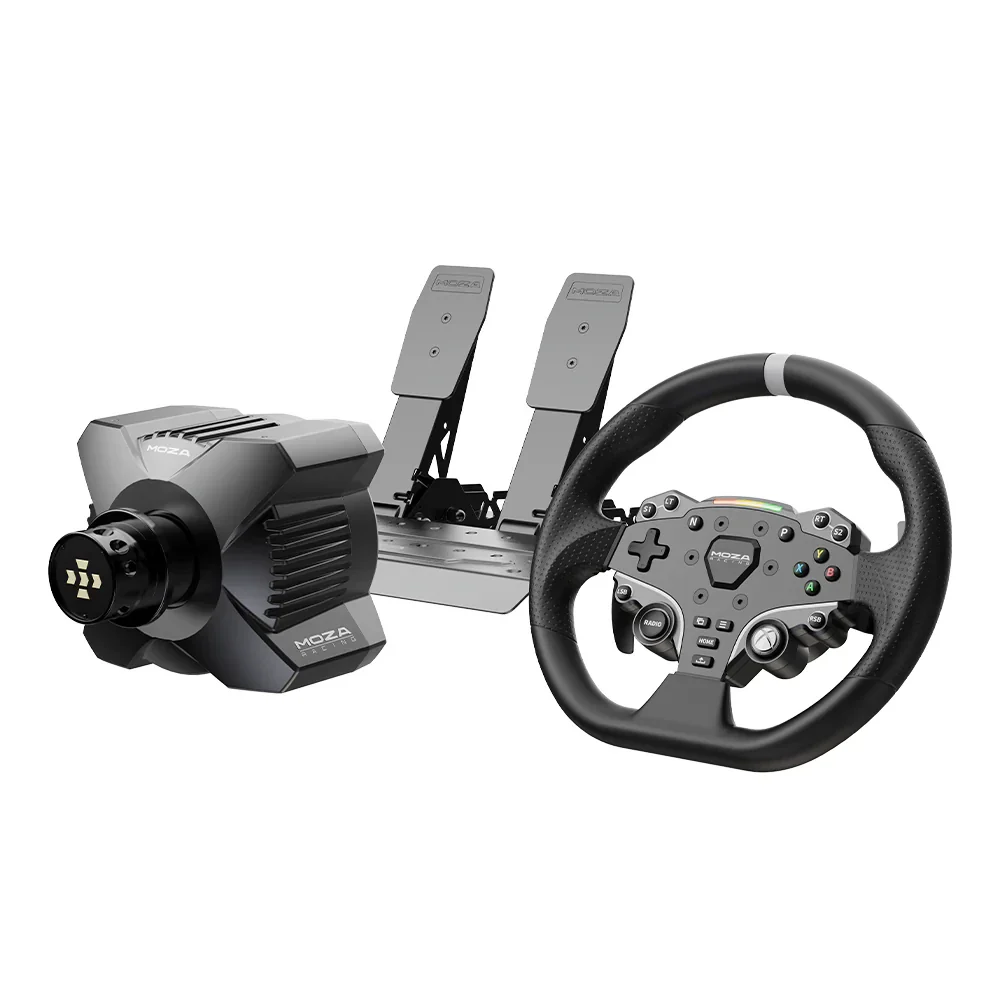

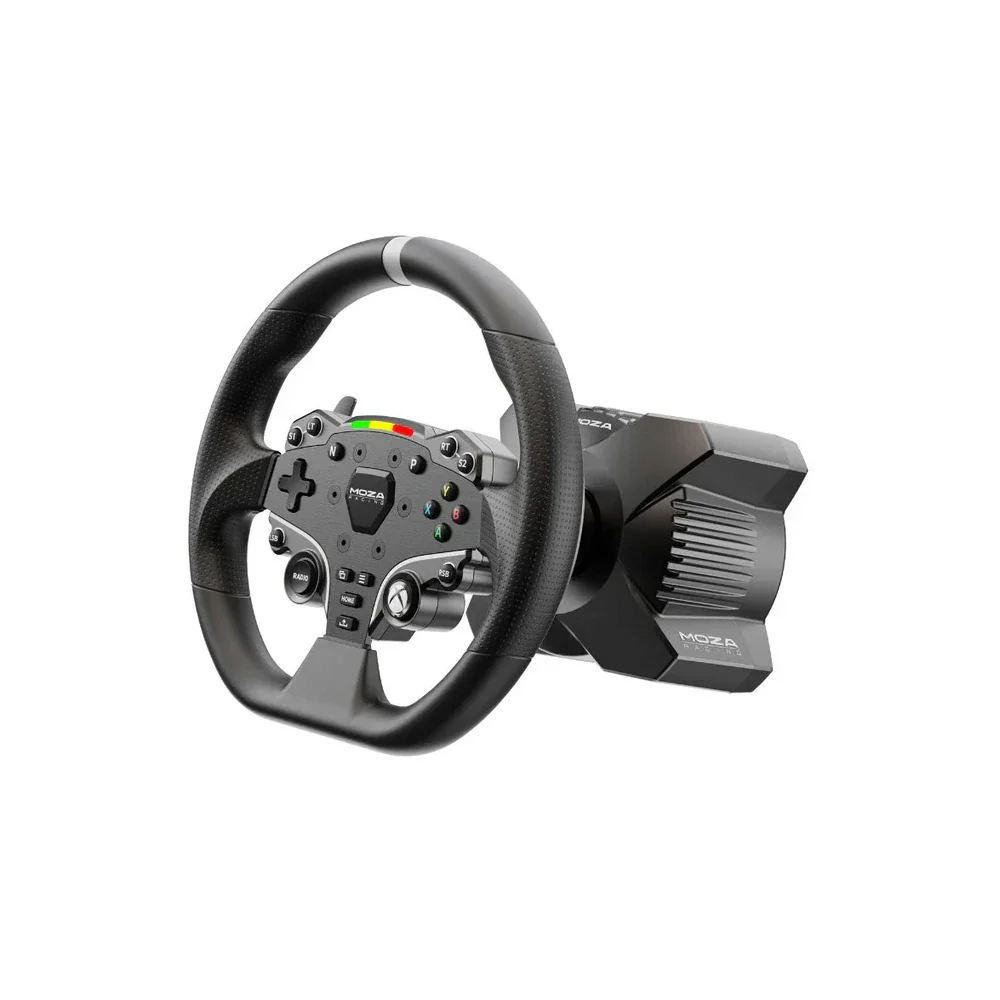

MOZA Racing R3 Direct Drive Base & Pedal Bundle for Xbox Series X/S and PC

Name: Moza R3 Racing Bundle for Xbox Series X/S and PC
Brand: Player1 Sim Gear
SKU: moza-racing-r3-direct-drive-base-pedal-bundle
Availability: InStock

Compatible with Xbox Series X/S and PC

Note: Xbox compatibility comes from the security chip in the wheel, so when using this wheel on Xbox you can also upgrade to other Moza wheel bases like the R5 and R12.

Experience sim racing like never before with MOZA’s first Xbox licensed sim racing package - the Moza R3 Racing Bundle. Featuring a powerful 3.9Nm DD Servo Motor, aviation-grade aluminium construction, and durable ISF PU grips, this bundle sets the benchmark for entry-level sim racing. Now you can enjoy ultra-low torque ripple, mobile app control, and compatibility with top PC and XBOX racing games like Forza Horizon and F1.

With an innovative X-shaped design, intelligent temperature control, and customizable features, the R3 delivers immersive feedback and precision. Officially licensed for Xbox and PC, this bundle merges console performance with MOZA’s Direct Drive technology. Elevate your personal sim racing setup with the MOZA R3 Racing Bundle.

MOZA's First XBOX Licensed Racing Bundle.

MOZA Racing have collaborated with Microsoft to create their first officially licensed, fully plug and play bundle for Xbox Series X|S and Xbox One.

Precise 3.9 Nm Direct-Drive Powerhouse

The MOZA R3’s 3.9Nm motor consistently delivers class leading direct drive power and precisely detailed force feedback easily outperforming traditional 3Nm bases.

This Package Includes:

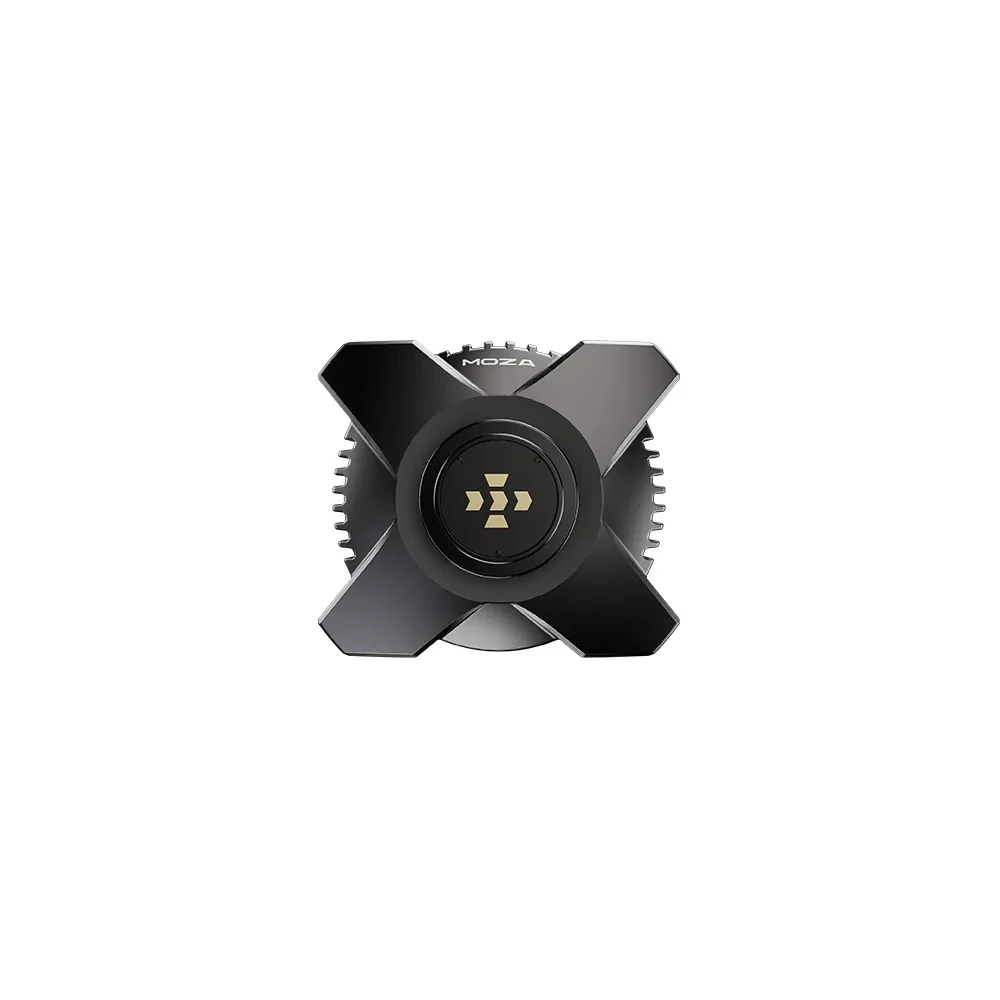

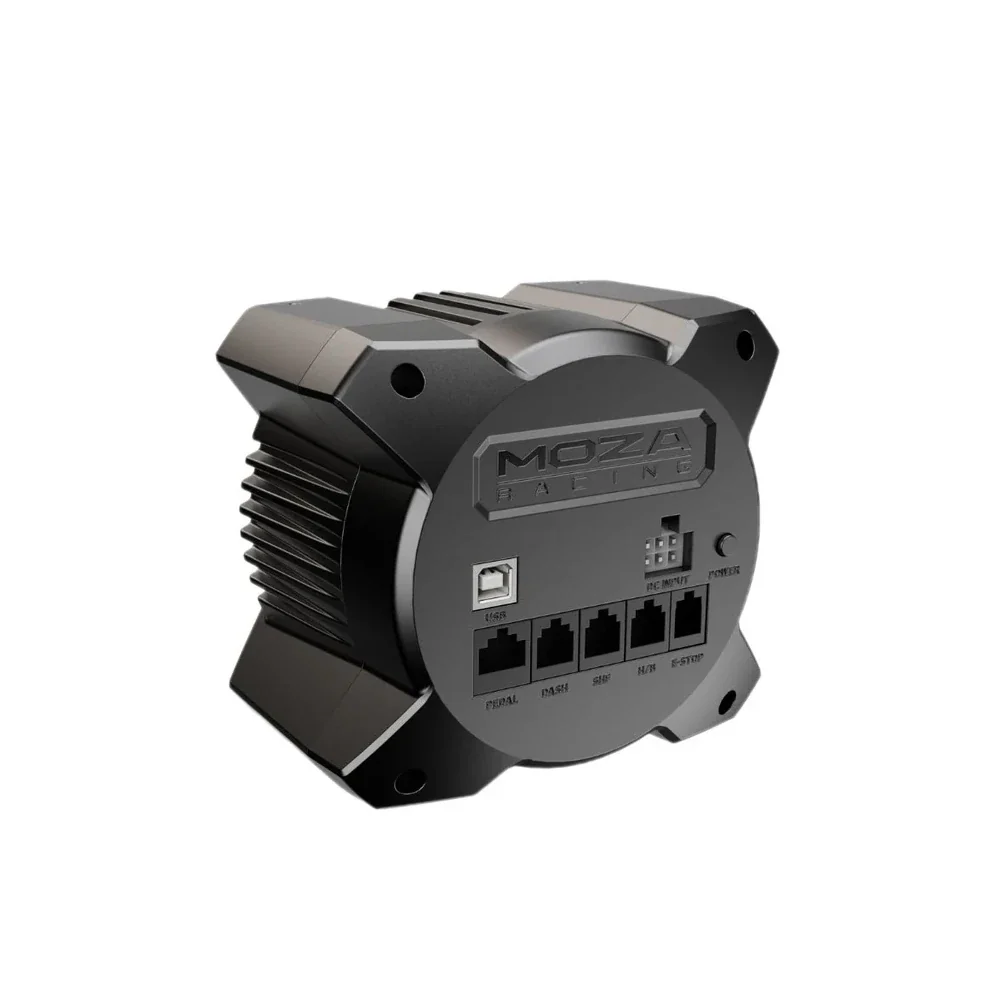

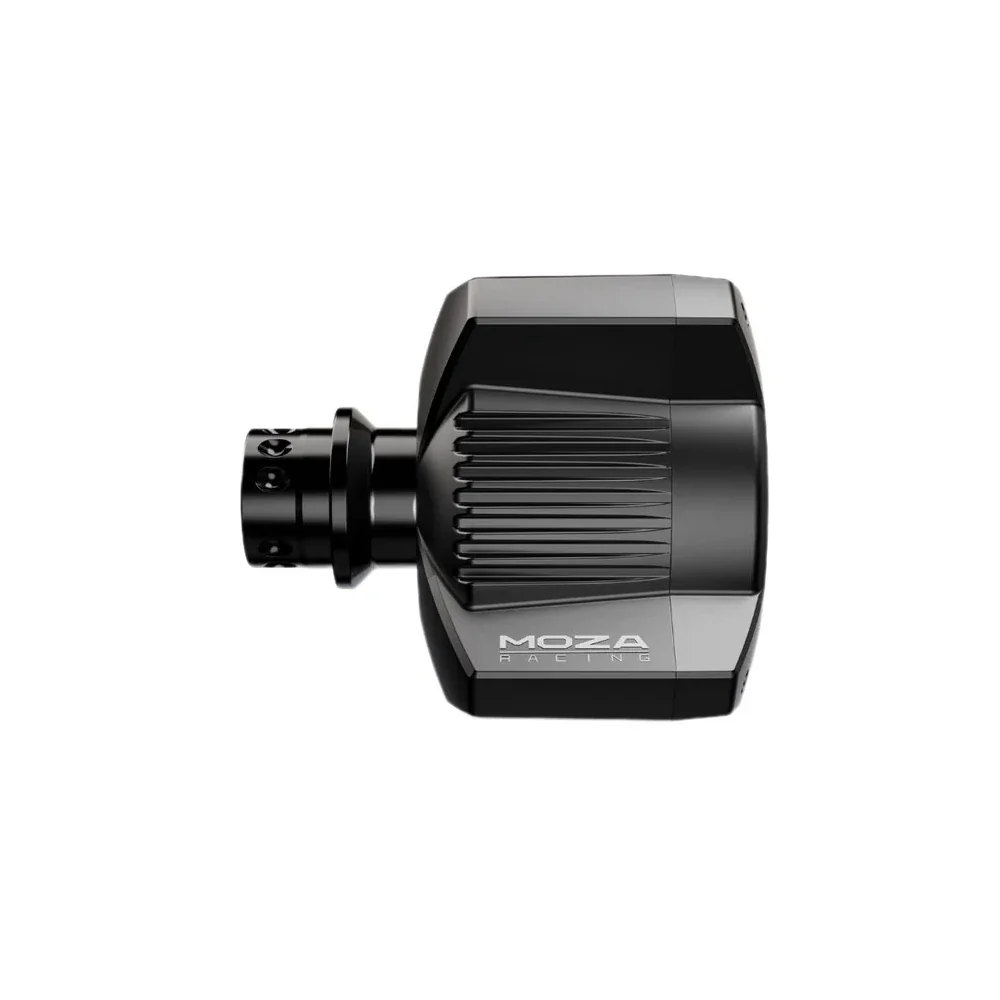

R3 DD base

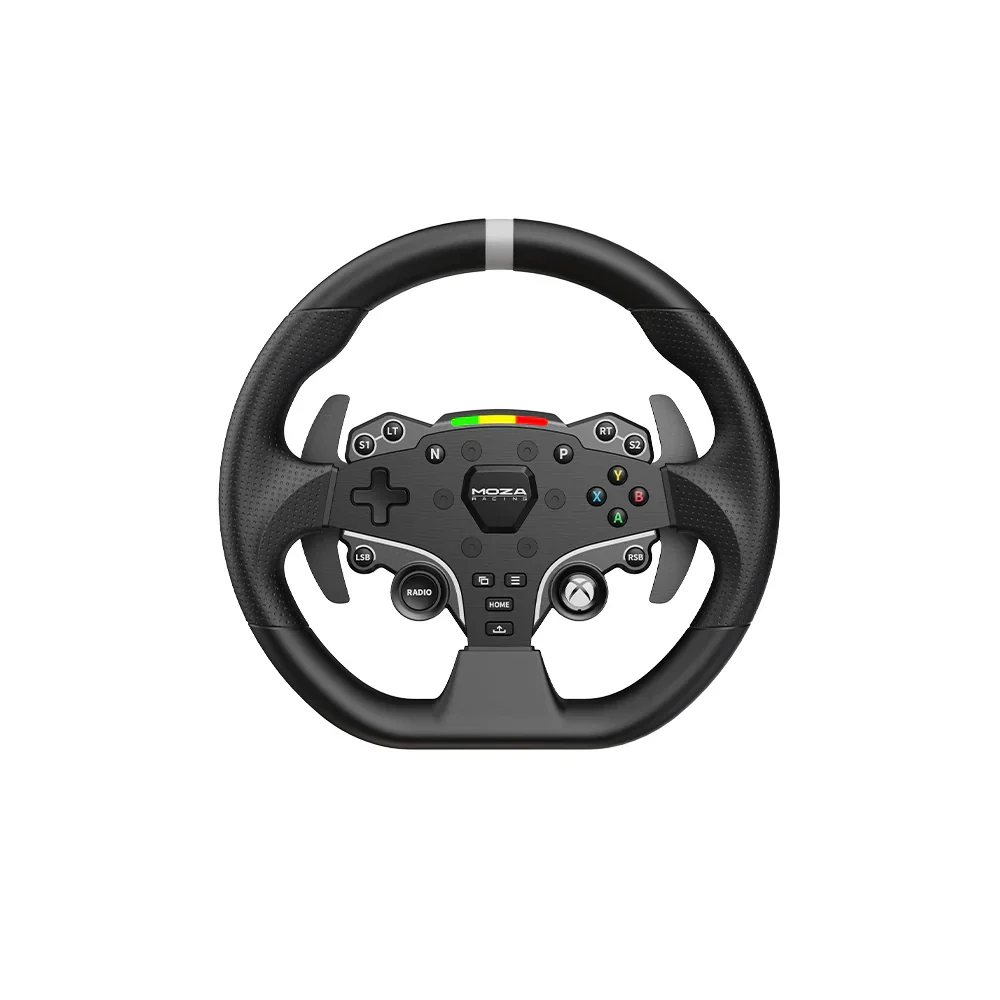

ES steering wheel (Note: This is different to the normal ES Wheel - this version has ISF PU grips and Xbox buttons)

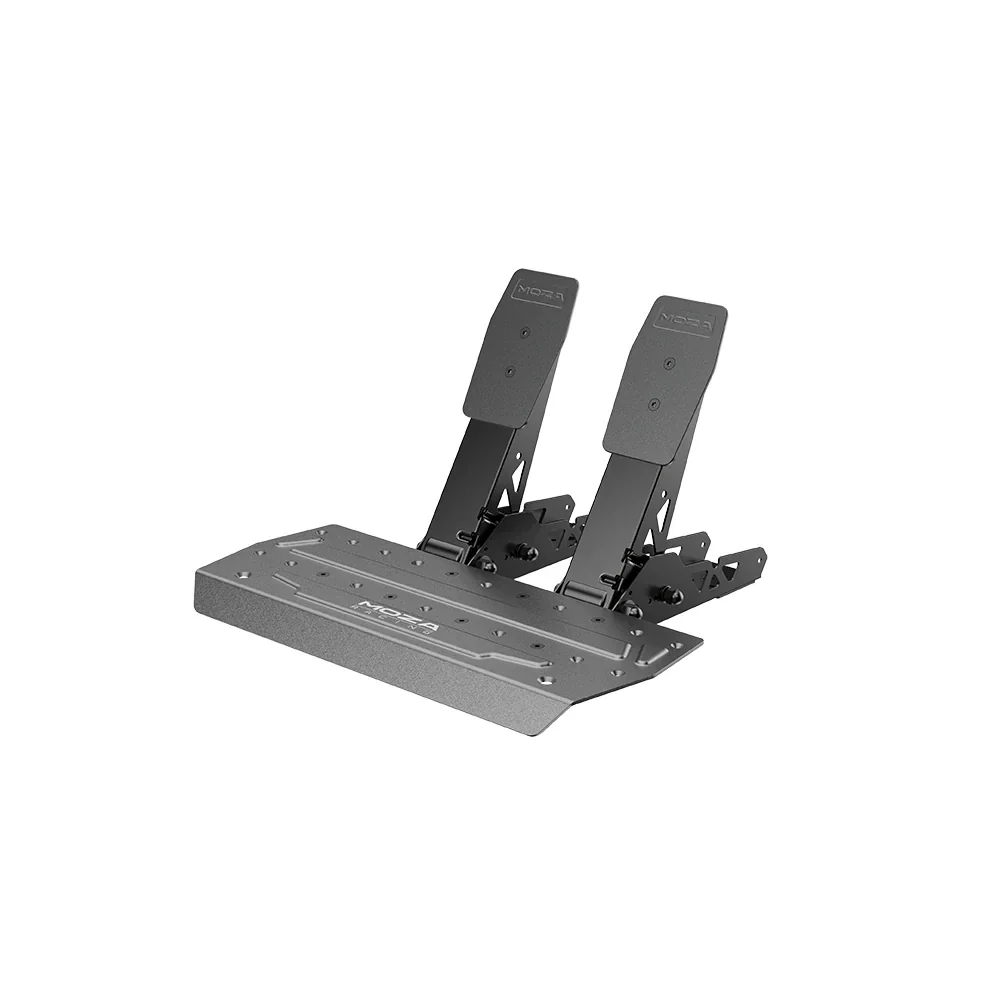

SR-P Lite racing pedals
Table Clamp
15-degree desk clamp
Power adapter
Power cord
USB cable
M4*10 countersunk screws x12
M8*12 pan head hex screws x3
M6*20 hex head bolts x2
M8 nuts x3
M6x12 hex head cap screw x4
Spacers x2
Anti-slip pads x2
2.5mm Alen wrench x1
7mm open-end spanner x1
5mm Allen wrench x1
USB A to B cable

Note: XBox compatibility comes from the security chip in the wheel, so when using this wheel you can also upgrade to other Moza Wheel Bases like the R5 and R12.

FAQ

Is the ES Steering Wheel in the R3 Bundle the same as the standalone ES Wheel sold in the store, and what are the differences between them?

The ES Steering Wheel included in the MOZA R3 Xbox Bundle is constructed using durable ISF PU grips. In contrast, the standalone ES Wheel currently offered features meticulously crafted stitched leather, but it’s not compatible with Xbox consoles.

Does the SR-P Lite Pedal included in the R3 Bundle have a clutch? How does it differ from the one in the R5 Bundle?

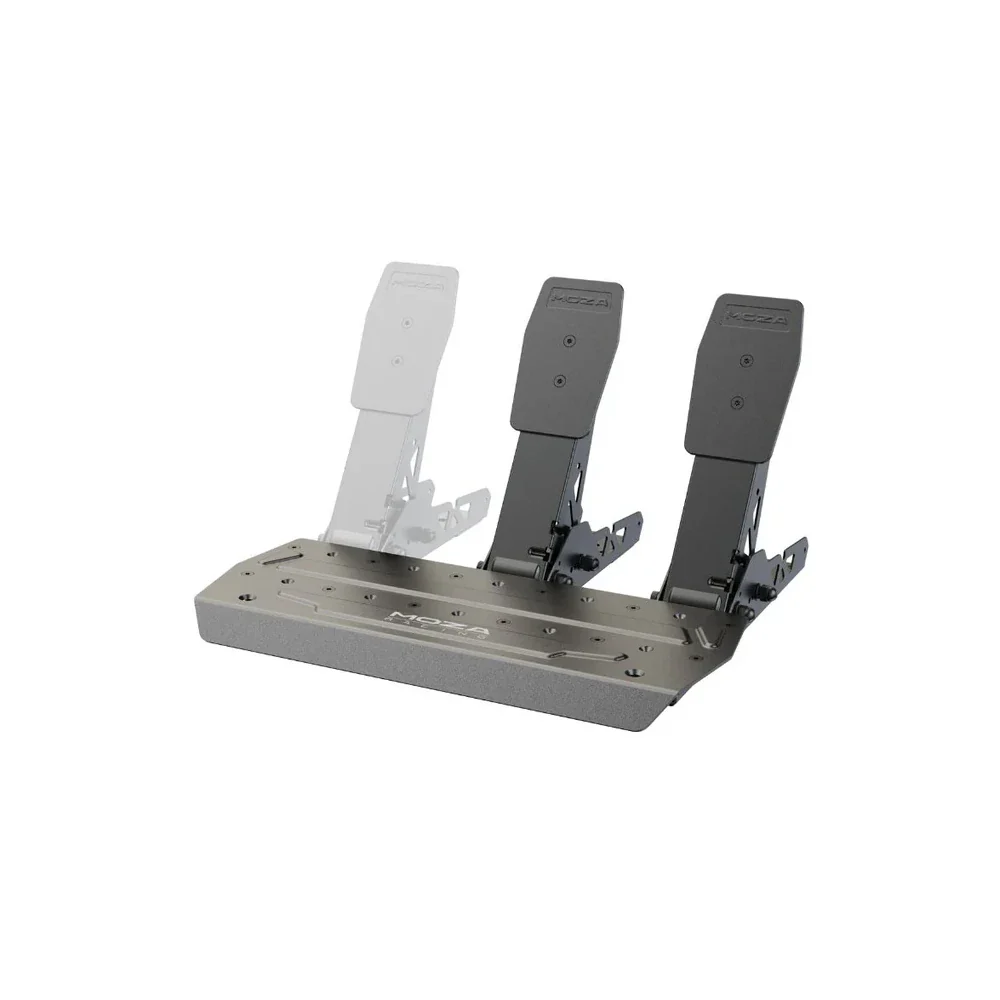

The pedals in the R3 Bundle are the ‘Pedal Set of 2 – No Clutch,’ which does not include a clutch pedal. We offer the ‘SR-P Lite Clutch Pedal‘ which can be purchased separately. Additionally, there are no differences between the SR-P Lite Pedals in the R3 Bundle and those included in the R5 Bundle.

How to switch Xbox/PC mode?

Press and hold the S1 and S2 buttons on the ESX steering wheel simultaneously for 5 seconds. The base will automatically restart and switch to Xbox/PC mode.

In Xbox mode: The steering wheel RPM lights will move from the left and right to the center.
In PC mode: The steering wheel RPM lights will show red, yellow, and green breathing lights.

Why are some popular racing games not adapted, like ACC and F1 23?

The xbox console platform should actually in principle have no adaption issues between device manufacturers and game manufacturers. Since Microsoft sets the standards, both game makers and device makers design according to Microsoft’s standards, and the two will naturally adapt. But with the F1 23 and ACC games, they first determine if the device is on its adaptation list before adapting. Devices that are not on the game’s adaptation list will not be able to plug and play. We are also working with different game manufacturers to advance the compatibility of xbox games.

Are all racing games on Xbox plug and play?

Most of the games listed are plug-and-play and require no additional configuration. A few games may require manual binding of buttons.

Can the MOZA handbrake and shifters be used in Xbox mode?

Peripherals can obtain Xbox certification support by directly connecting to the base. If the game supports custom key bindings, the peripherals can be adapted normally in the game (the adaptation needs to be determined according to the specific game)

Can the Xbox controller be connected at the same time?

The Xbox controller and the racing steering wheel are two different control devices and there will be no conflict. However, in the Forza series of games, switching back and forth between the two control devices may cause the controller to be in a vibration state all the time.

The tentative solution is as follows:

Controller wired connection: Disconnect the USB power supply cable.
Controller wireless connection: Long press the Xbox button on the controller and choose to turn it off.
