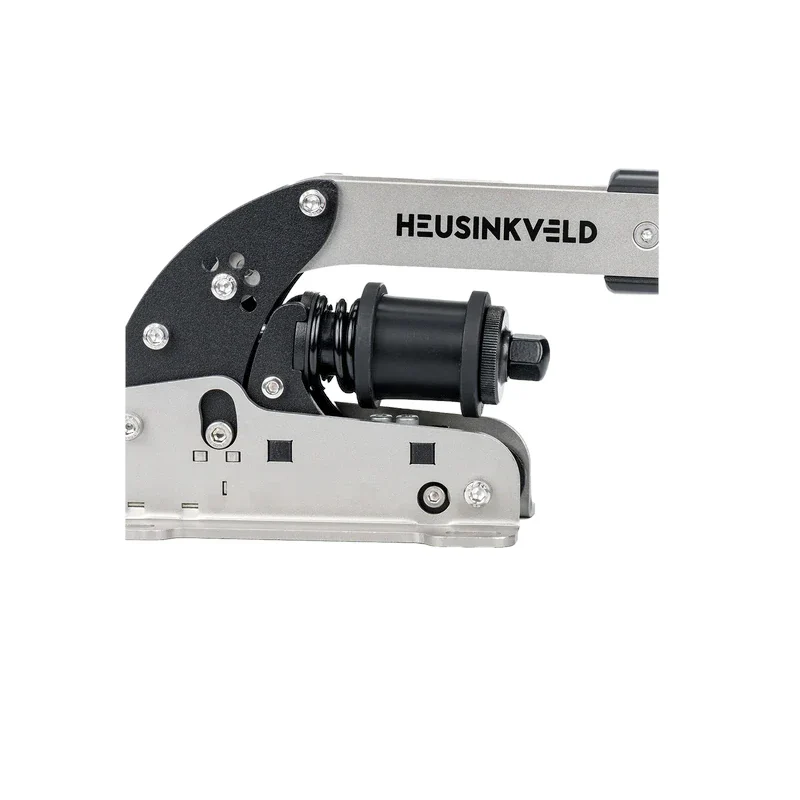

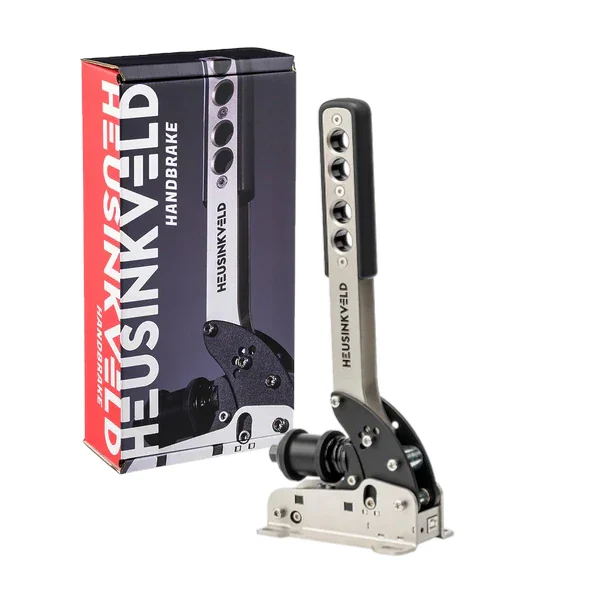

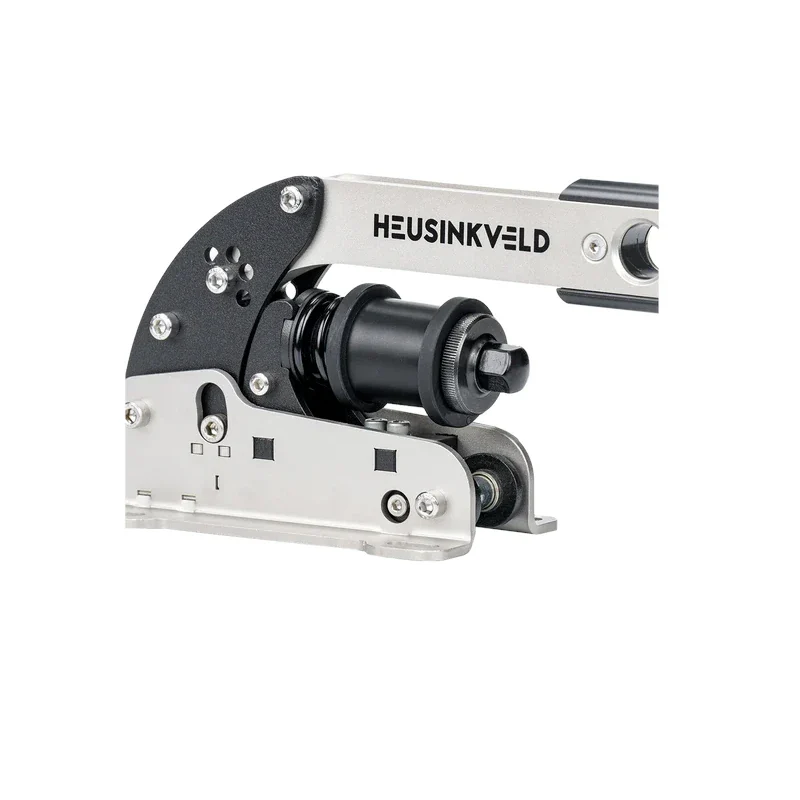

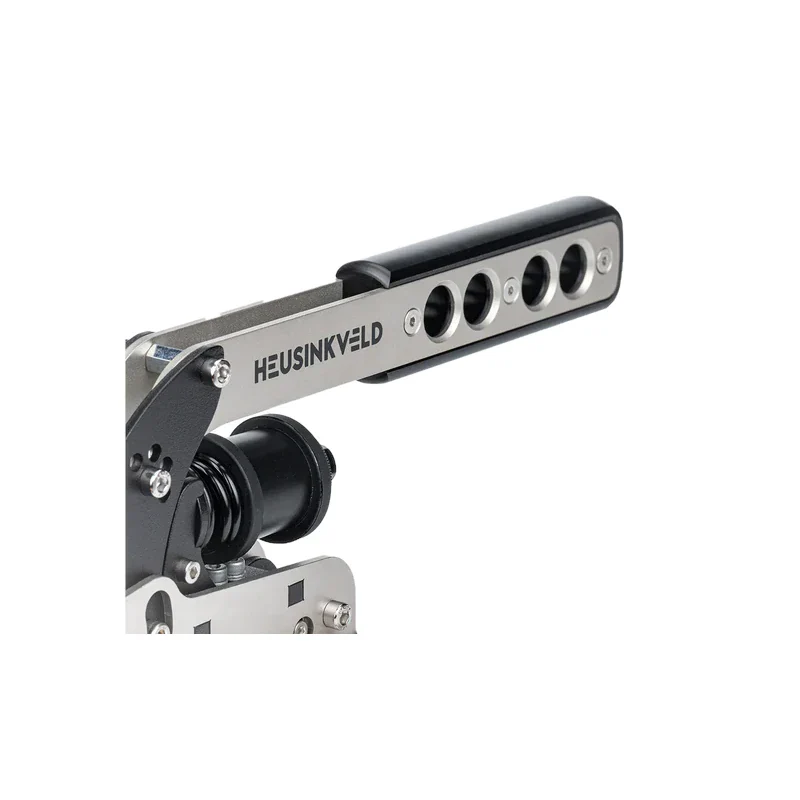

The Heusinkveld Handbrake is a versatile, pressure sensitive USB simulator handbrake using load cell technology. It has a firm and adjustable progressive feel with up to 22kg of force at the lever (120kg load cell). Complete freedom to create custom output curves with Heusinkveld SmartControl, adjust settings and profiles while driving with SmartControl Live. Adjustable horizontal or vertical lever with fine-tune adjustment. Comes with adapter plate with yaw adjustment for aluminium profiles.

When rallying or drifting, you want full control. The Heusinkveld Handbrake is a highly adjustable, pressure sensitive USB handbrake using load cell technology. A wide range of options to set your preferred mechanical feel. Complete freedom to shape the output curve using Heusinkveld SmartControl, adjust controller settings and profiles while driving with our all new SmartControl Live software. A versatile, high quality handbrake system.

Mounting

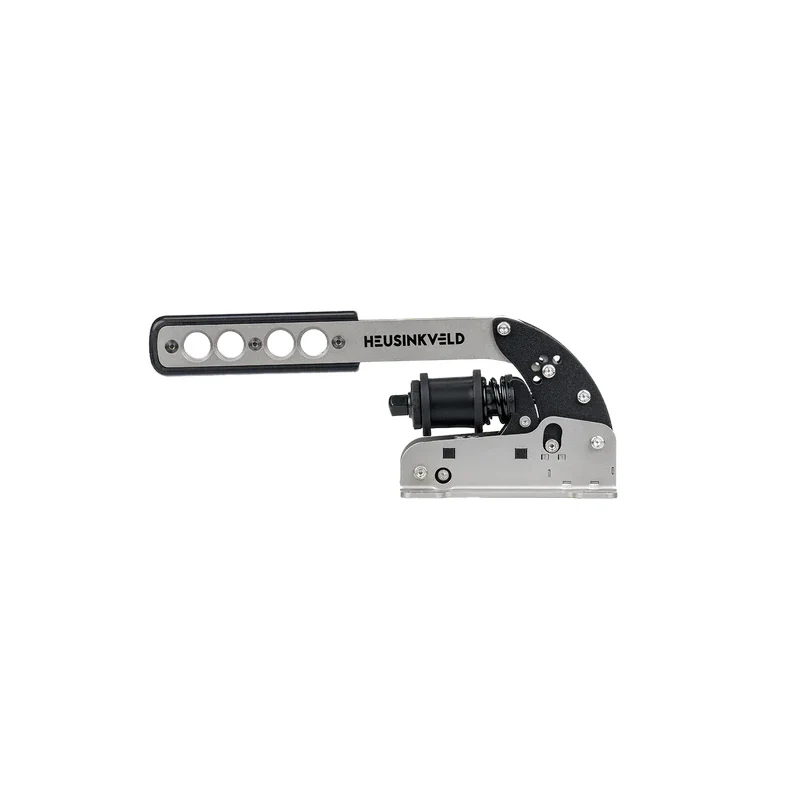

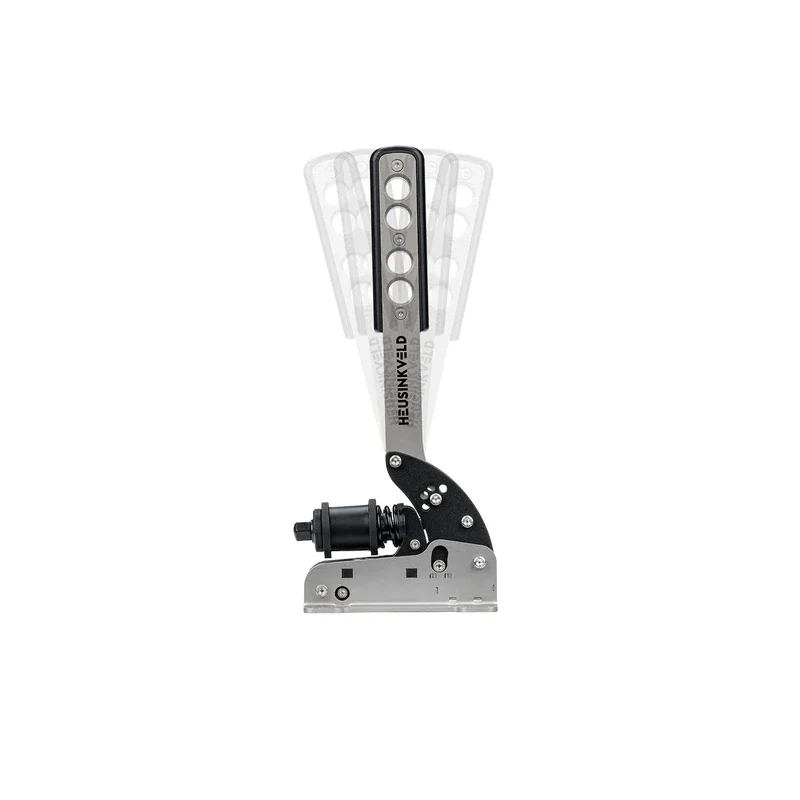

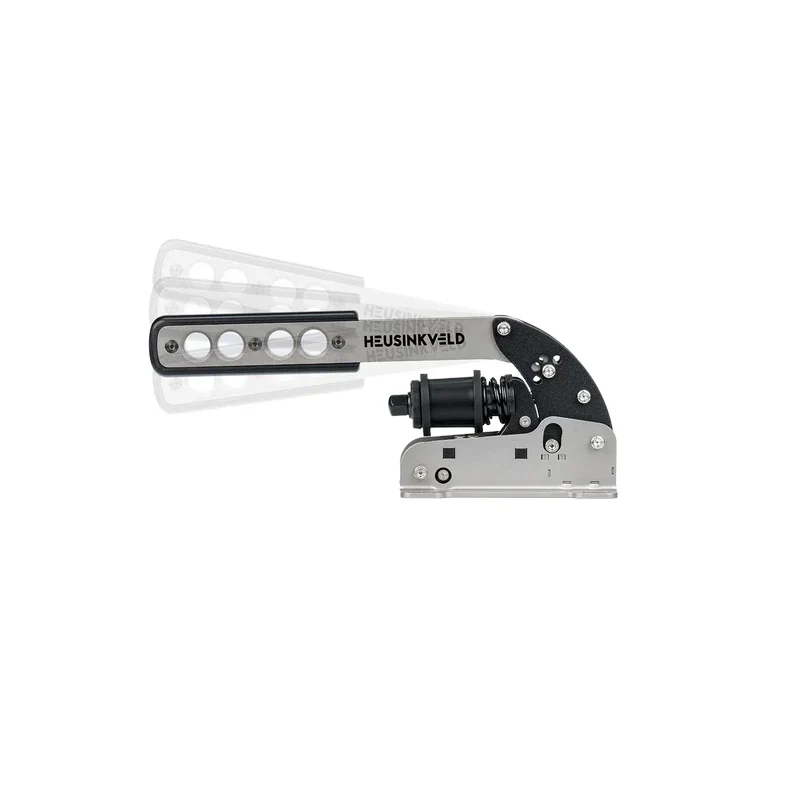

There are multiple options to mount the handbrake to your simulator. The base itself can be mounted in both a horizontal or vertical position. Combined with the option to mount the lever horizontal or vertical you’ll have plenty of options to find a suitable spot for the handbrake in your simulator.

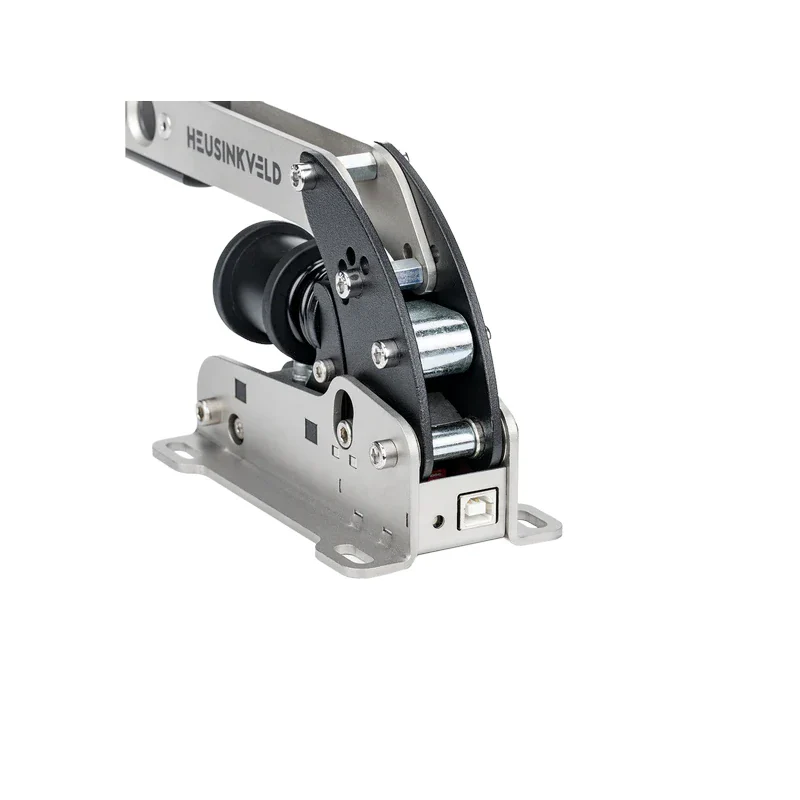

The base of the handbrake itself can be mounted in 2 ways. The first option is to use the 4 mounting holes on the base itself (2 on each side), which allow you to mount the handbrake to a flat surface. Make sure you have matching mounting holes in the flat surface to which you connect the handbrake base.

The second option is to use the included optional adapter plate. This allows you to easily mount the handbrake to aluminium profiles (aluminium profiles not included).

An added advantage of this adapter plate is that it allows you to easily adjust the yaw of the handbrake. This allows you offset the yaw of the handbrake base up to 22,5 degrees.

Using the yaw adjustment, you can rotate the base so you can optimize the direction into which you pull the lever. This can vastly improve the ergonomics and integration of the handbrake in your simulator.
