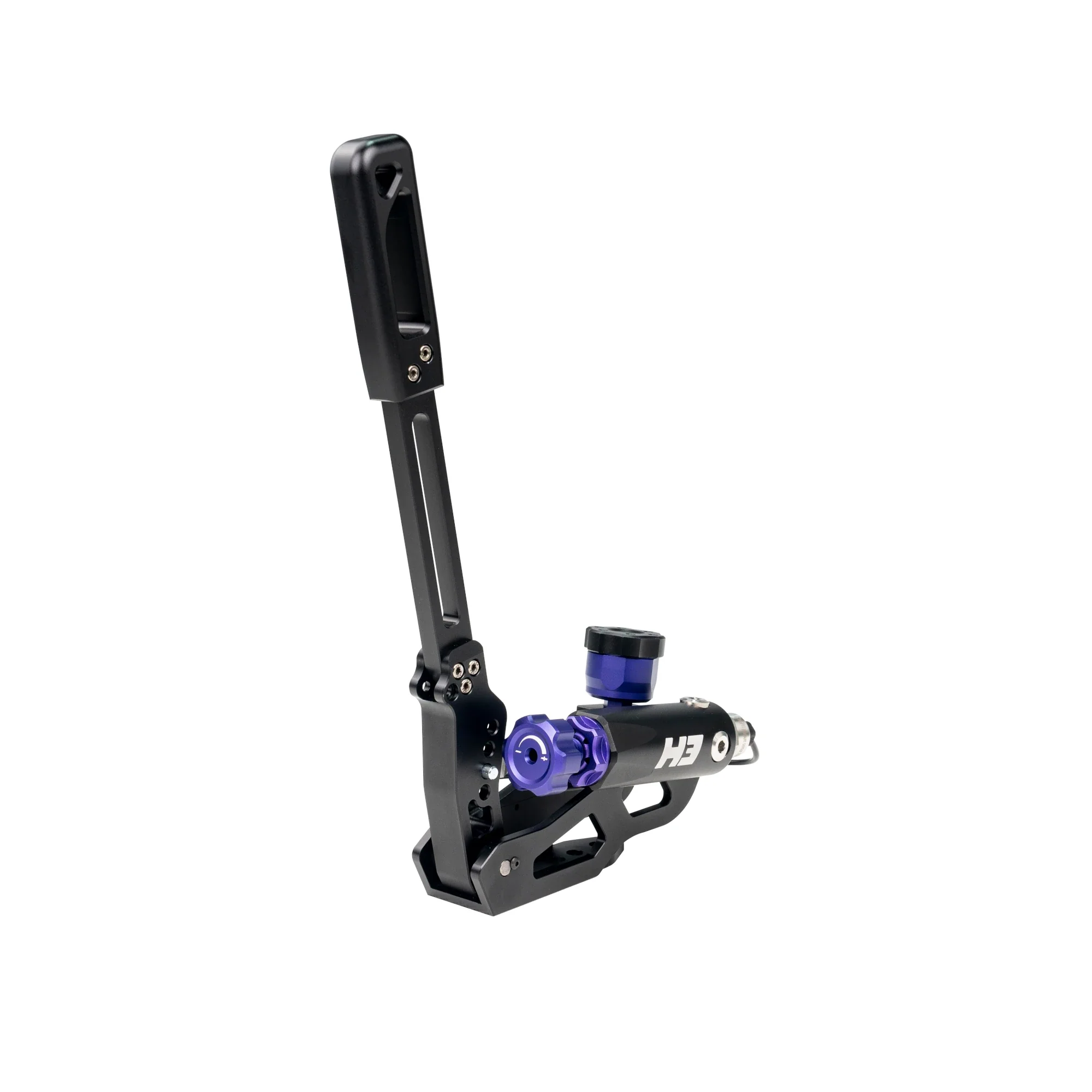

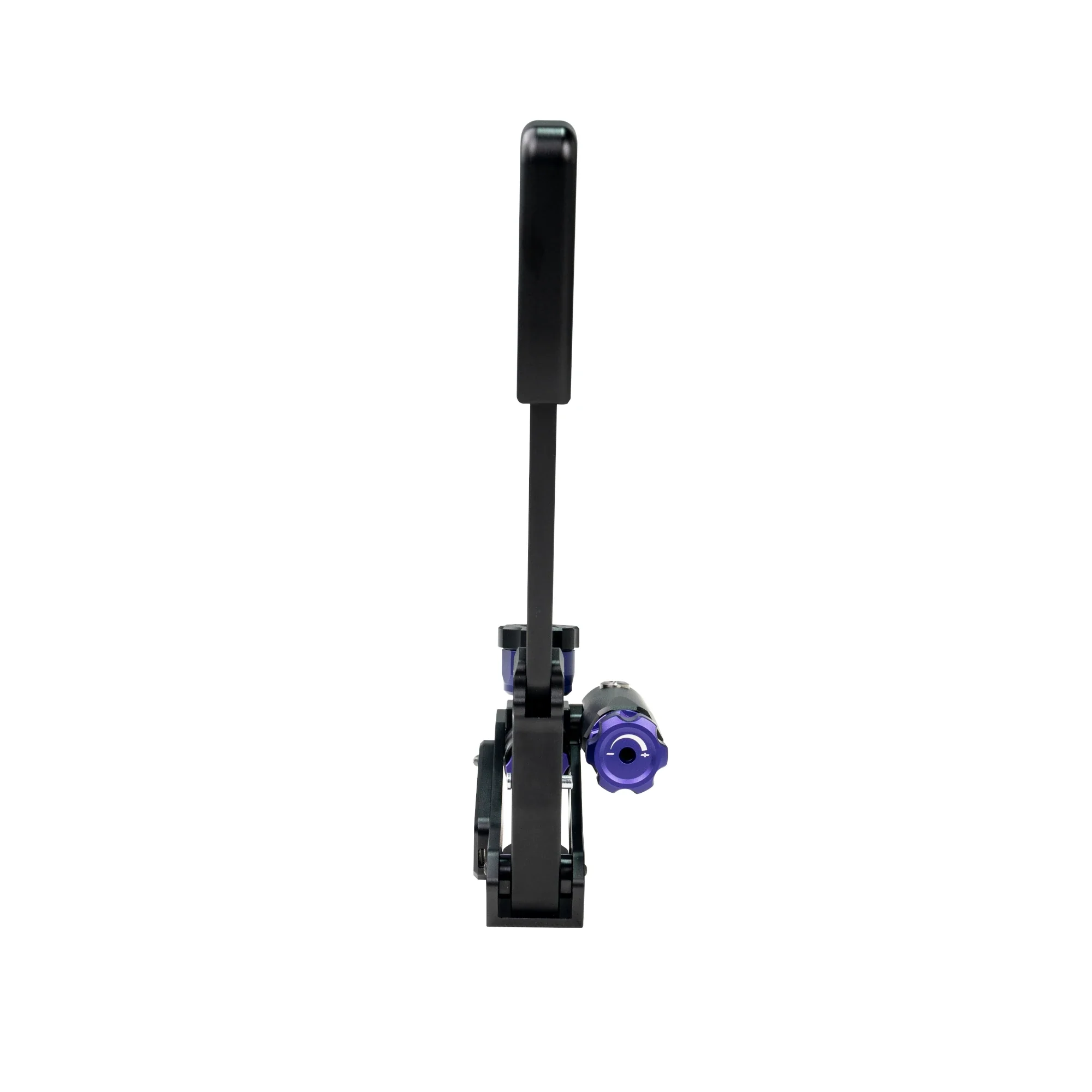

Conspit H3 Dual-mode Hydraulic Handbrake

The Conspit H3 Dual-mode Hydraulic Handbrake is specifically designed for drivers who delve deep into sim-racing drifting and rally. Equipped with patented hydraulic technology and advanced craftsmanship, take control of every turn, slide and drift.

2nd generation CONSPIT hydraulic system

• Features the advanced 2nd generation CONSPIT patented hydraulic system with a newly redesigned internal oil circuit, significantly enhancing hydraulic damping
• High-specification elastomer combined with a robust fixed structure ensures exceptional durability during prolonged use
• Extended piston and precision-machined hydraulic cylinder surface enhance sealing performance
• Maintenance-free oil container

Precise Control

• Equipped with a 10Mpa high-precision hydraulic sensor and high-performance polyurethane elastomer.
• Capable of sensing the slightest force variations, ensuring precise control over rear wheel slip.

Dual-mode Lever Position

• Allows for easy switching between classic and competitive handbrake lever positions, accommodating various car models seamlessly.

Mechanical Advancements

• Fully enclosed design at shaft connections, opting for high-specification metal sealed bearings to ensure dust resistance and stable performance over long-term use.
• Innovative design and efficient production solutions deliver superior quality and a competitive price tag.
• Race-grade CNC aluminum alloy components, with internal cylinder parts precision-machined using advanced processes and equipment.
• Refined design ensures zero mechanical free play, providing a consistent and solid tactile feedback.
• Optimized surface treatment process results in a denser and more durable coating.

CONSPIT Aesthetic Style

• Distinctive racing-industrial aesthetic language, offering a blend of mechanical functionality and visual appeal.

CONSPIT LINK 2.0

• Supports automatic device connection and mapping curve function, ensuring a swift setup process.

Specifications

Dimensions (L*W*H mm)	218*81*320
Net Weight	1.04kg
Primary Material	(Aluminum Alloy)
Setup Mode	(Classic (Horizontal) / Competitive (Vertical))
Sensor Type	(Hydraulic Sensor)
Mounting Method	(Bottom Φ6 Through Hole)
Platform	PC
Connection	(USB Direct, CONSPIT CAN, Fanatec Base (For details, please contact CONSPIT official))
Cable	(USB Cable, CAN Data Cable)
Software	CONSPIT LINK 2.0
