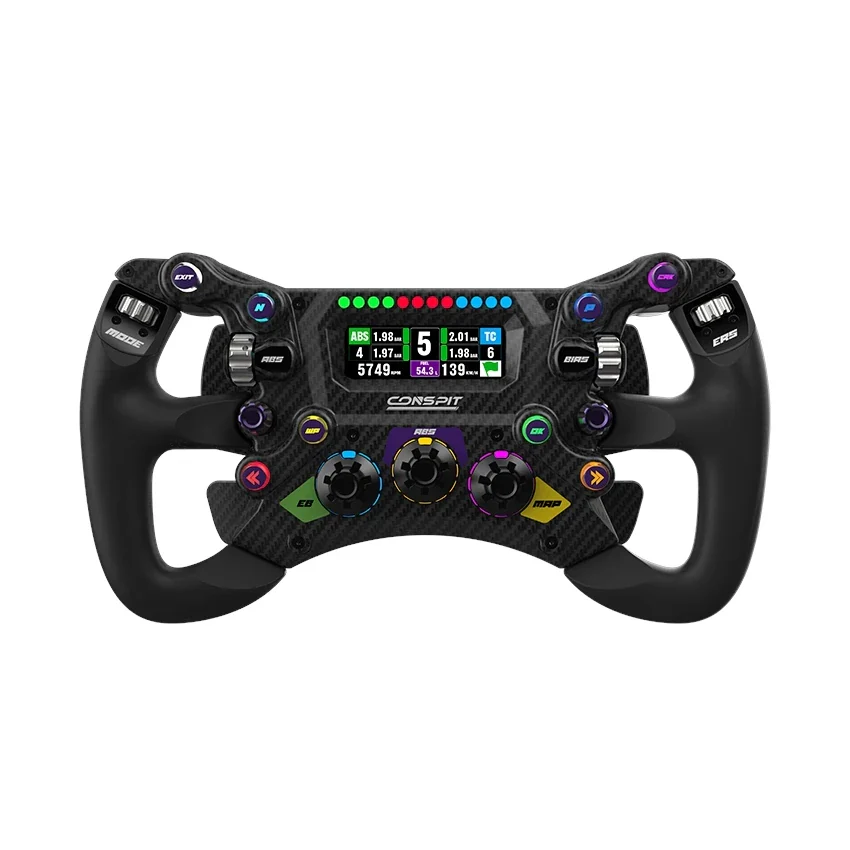

Conspit 300 GT Wheel

The Conspit 300 GT introduces a groundbreaking combination of Conspit’s proprietary technologies, built upon a race-grade carbon fiber lightweight structure. It integrates cutting-edge ergonomics, optimized control layouts, and unique interactive control-display feature, creating a new vision of practical aesthetics for sim racing.

Select Your Quick Release

The Conspit 300 GT includes the Quick Con 50/70mm Quick Release Adapter for easy attachment to the wheel base quick release of your choice.  Note: Wheel Side Quick Release* required specific to your wheel base.  *Sold Separately.

Customise Your Wheel

Full-color customization, supporting lighting effects feedback control via CONSPIT Link 2.0 for the display screen and/or SimHub for the lighting customisation.

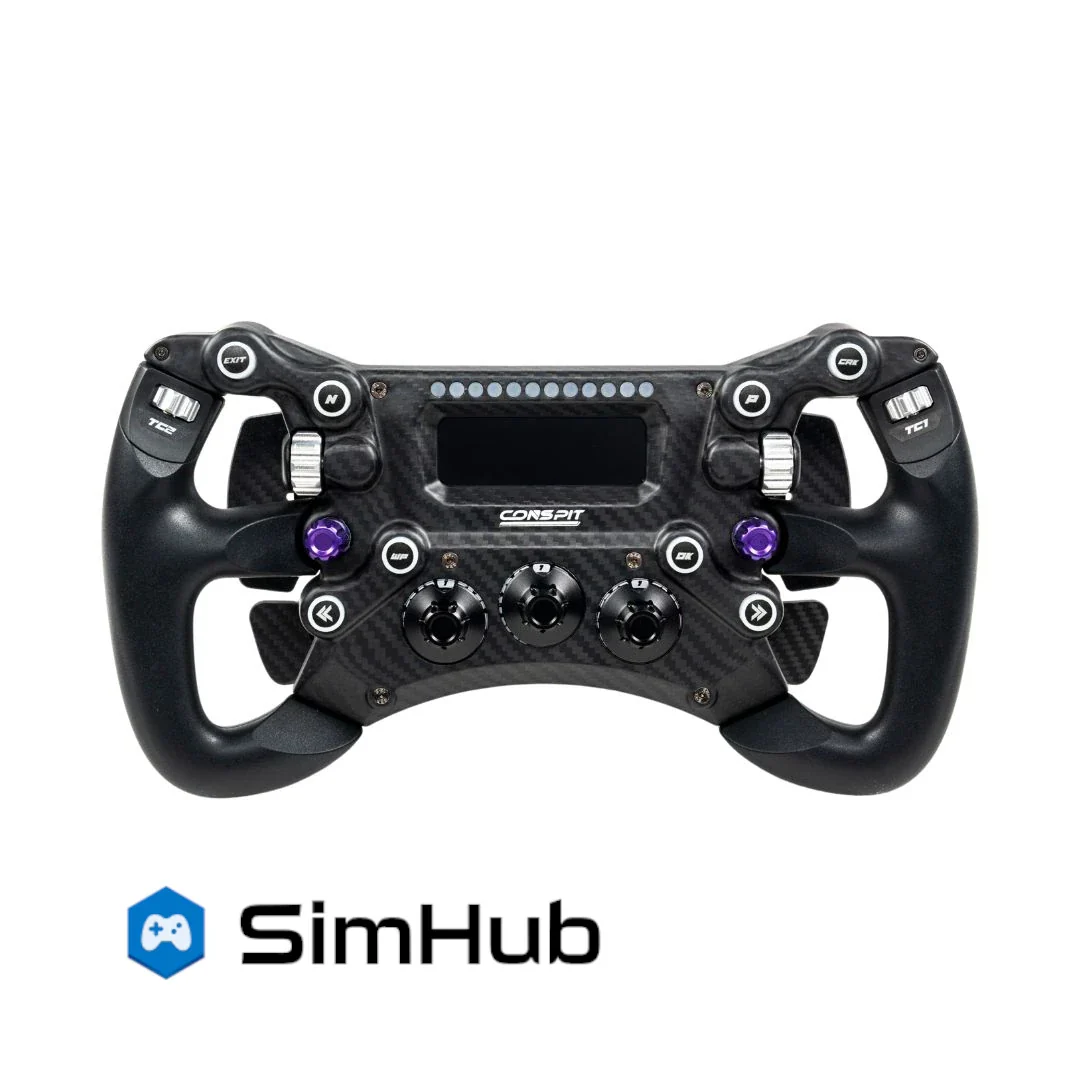

All lights are compatible with SimHub, allowing for comprehensive race and vehicle telemetry indicators.

Connect To Any Wheelbase:

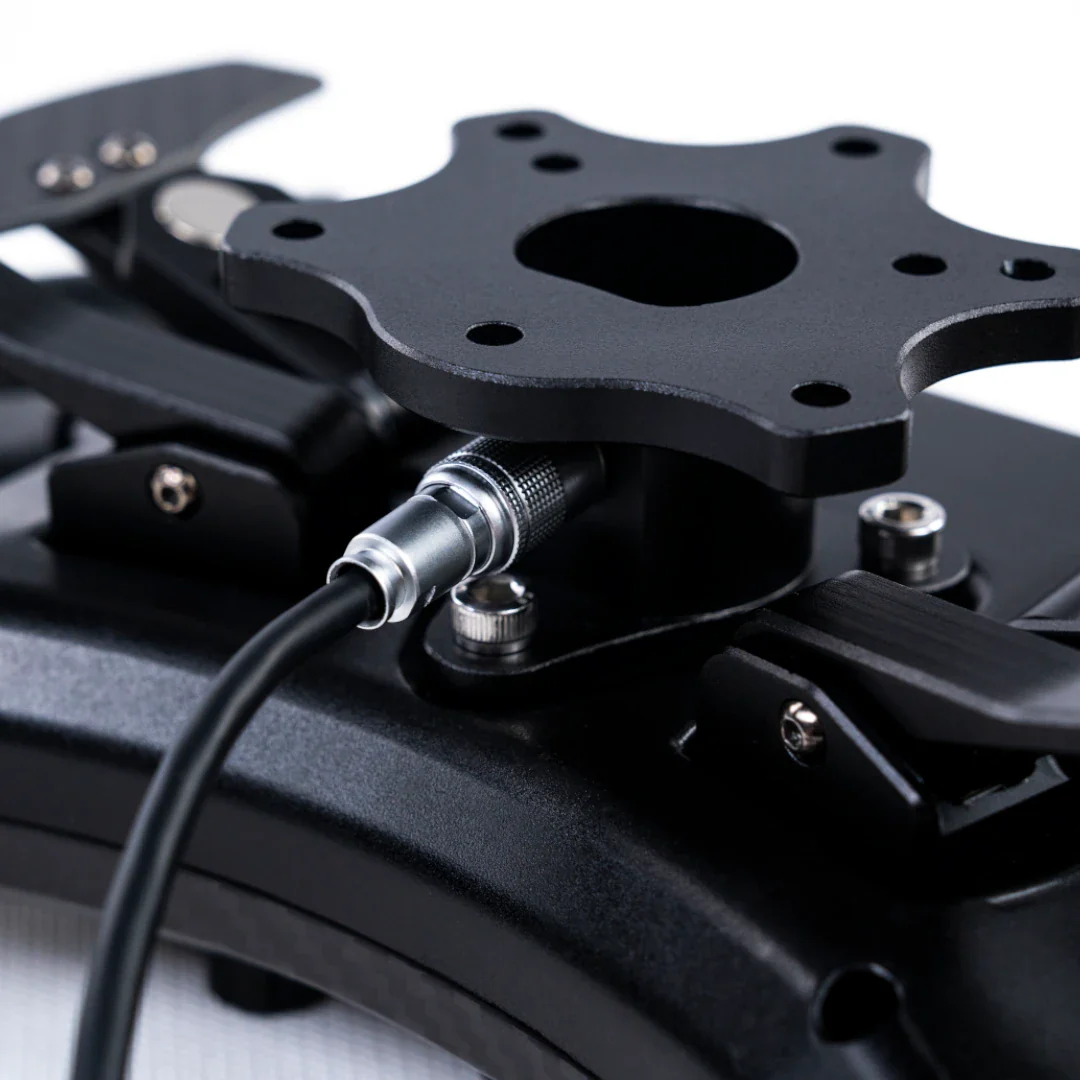

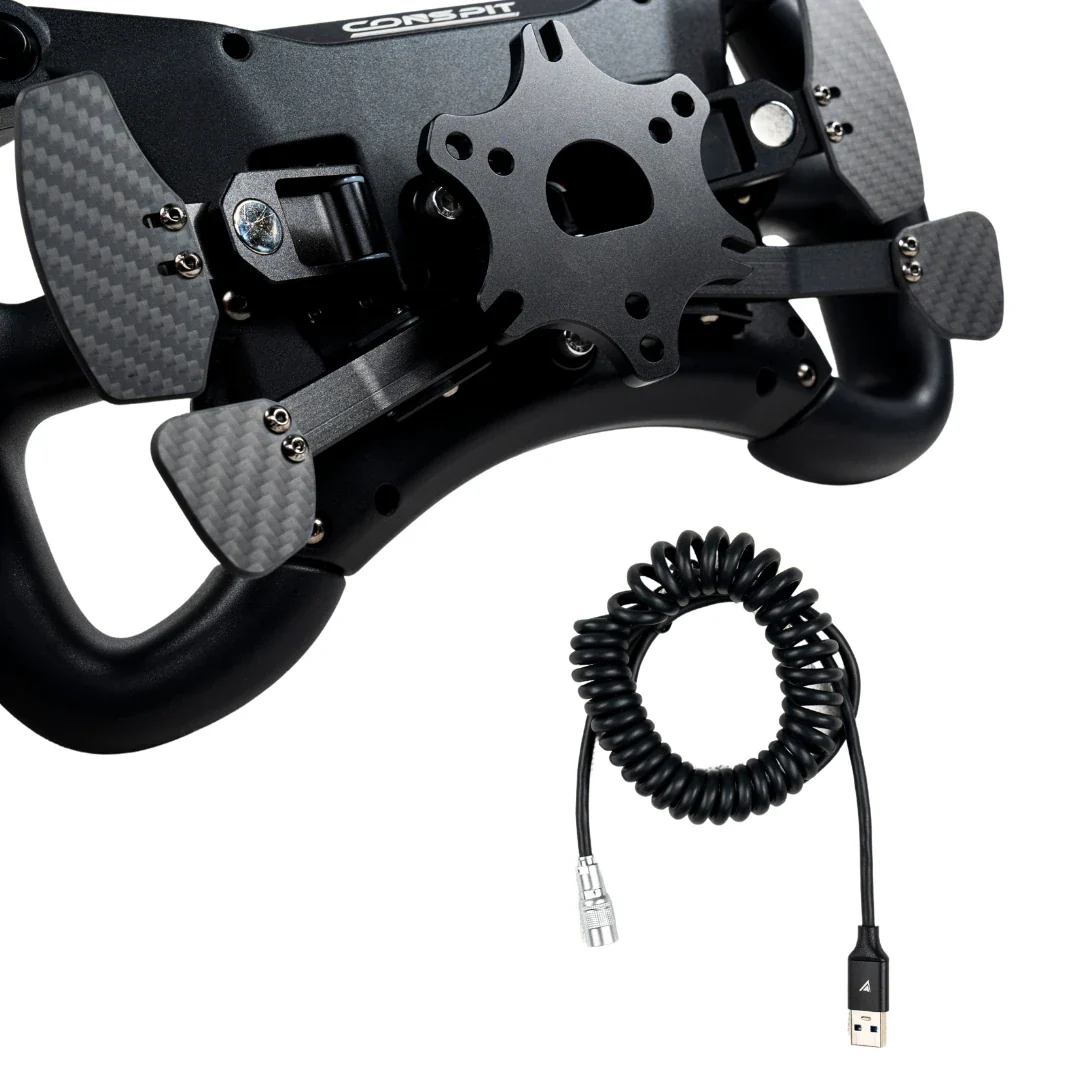

All Conspit wheels include a 50:70 Wired Quick Release Adapter with an aviation-grade USB wired connection, providing compatibility with all major 3rd Party 70mm Quick Release systems.

Race-Grade Carbon Fiber Structure

• 3D True Carbon Fiber Front Panel + High-Strength Aluminum Alloy Main Body in a precision interlocking design
• 1150g ultra-lightweight and rigid construction offers extremely low rotational inertia and high torsional rigidity, minimizing interference with force feedback details.

3D True Carbon fiber Front Cover

• The front housing is crafted from T-300 carbon fiber prepreg, weighing just 43 grams and offering tensile strength up to 16 times that of carbon fiber composite injection molding.
• 12-layer prepreg lamination structure, utilizing the same Compression Molding Carbon Fiber Process proven in Le Mans-level racing.

TECHNICAL FEATURES

• Hybrid structure in 3D molded T-300 carbon fiber and high-strength aerospace aluminum with ultra-lightweight weight of only 1150g.
• T-300 prepreg carbon fiber front cover weighing 43g with 12-layer lamination and Le Mans-grade compression molding process.
• High-strength aluminum alloy rear main body injection molded as one piece and CNC machined for maximum rigidity.
• Proprietary 2.99-inch display with 5 dedicated telemetry dashboards, additional pages coming with future updates.

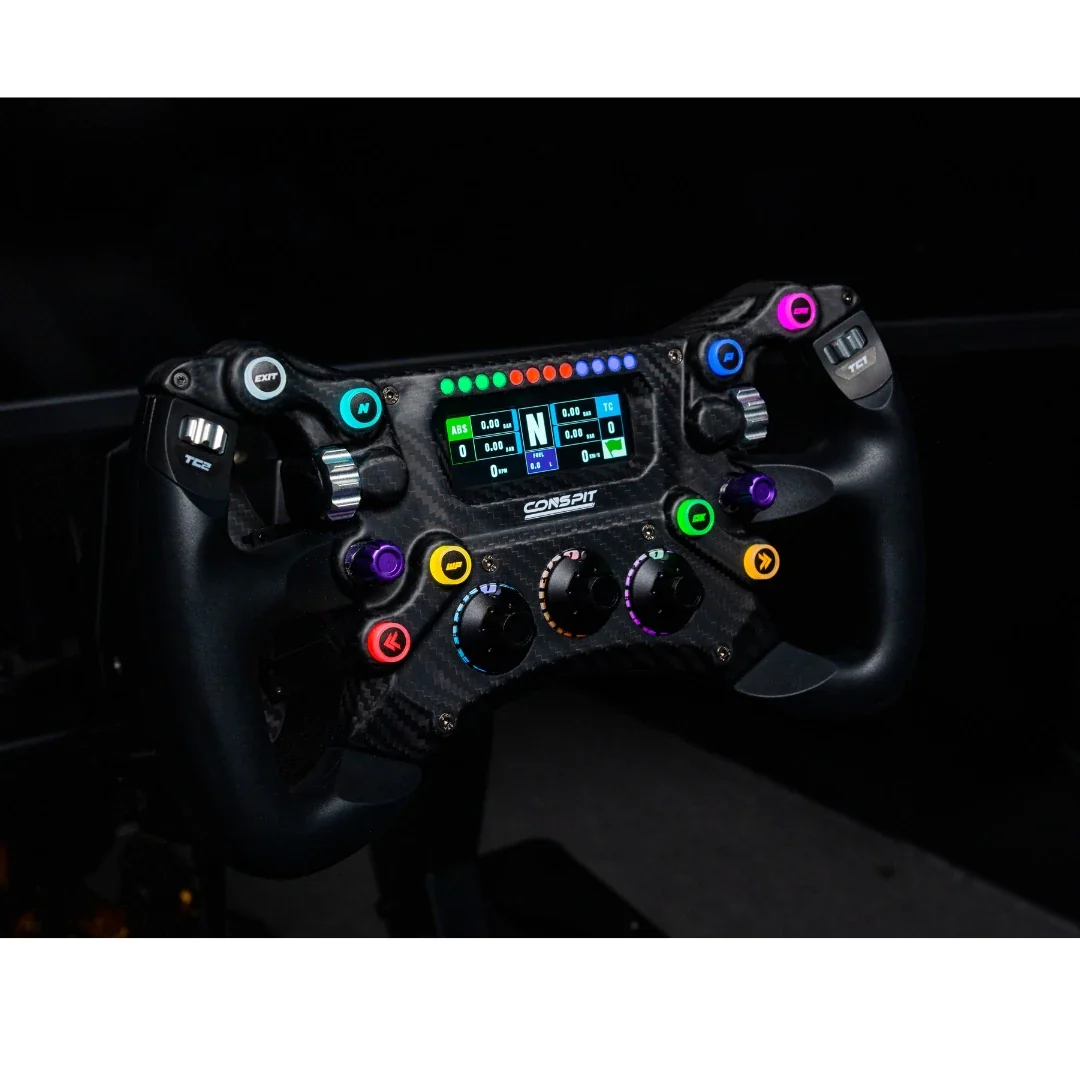

• Professional lighting system with 56 fully customizable RGB LEDs: 8 button lights, 12 RPM indicator LEDs and 36 knob position light indicators.
• Full integration with SimHub for comprehensive race and vehicle telemetry indicators.
• 8 modular RGB ErgoTouch buttons with 500g actuation force + silicone shock-absorbing pad + clear rebound.
• 2 ThumbClick knobs ergonomically optimized for thumb with triple precision in diameter, resistance and actuation feel.
• 3 dual-mode knobs (+/- and absolute) with encoder remapping function via central knob.

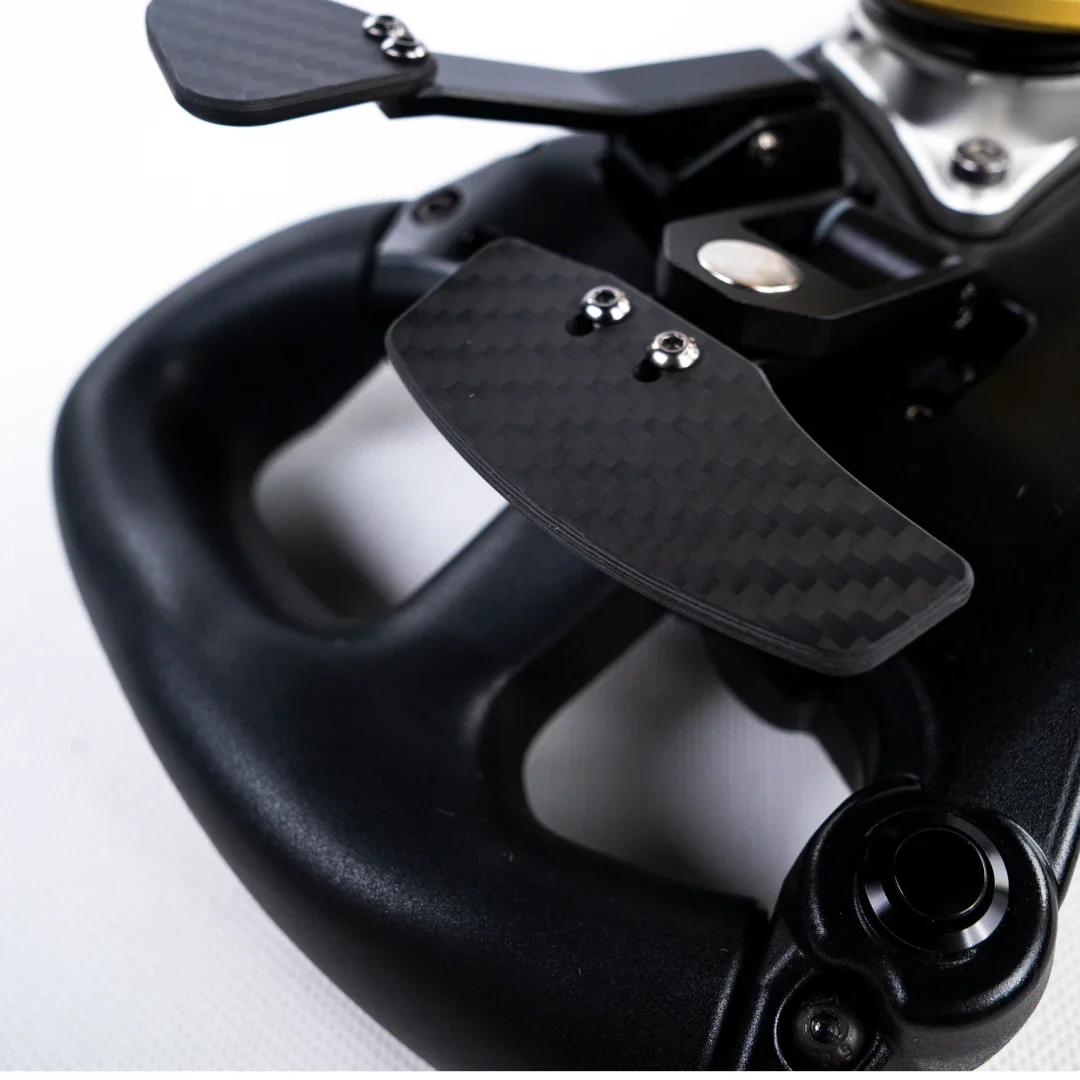

• Adjustable magnetic paddles with three pressure options: 550gf, 660gf and 900gf, tested for 500,000 clicks with pressure deviation <4%.
• Dual-clutch clutch paddles with settings for dual-clutch mode, bite point and independent axis via CONSPIT Link 2.0.
• EnduroGrips handle in high-quality TPU, 3 times more resistant than standard TPE, anti-wear and anti-dirt.
• Anti-fatigue geometry optimized for full grip, dual compatible for 2 or 3 lower finger grip.
• 110 fully customizable controls for the most professional in-game control needs.

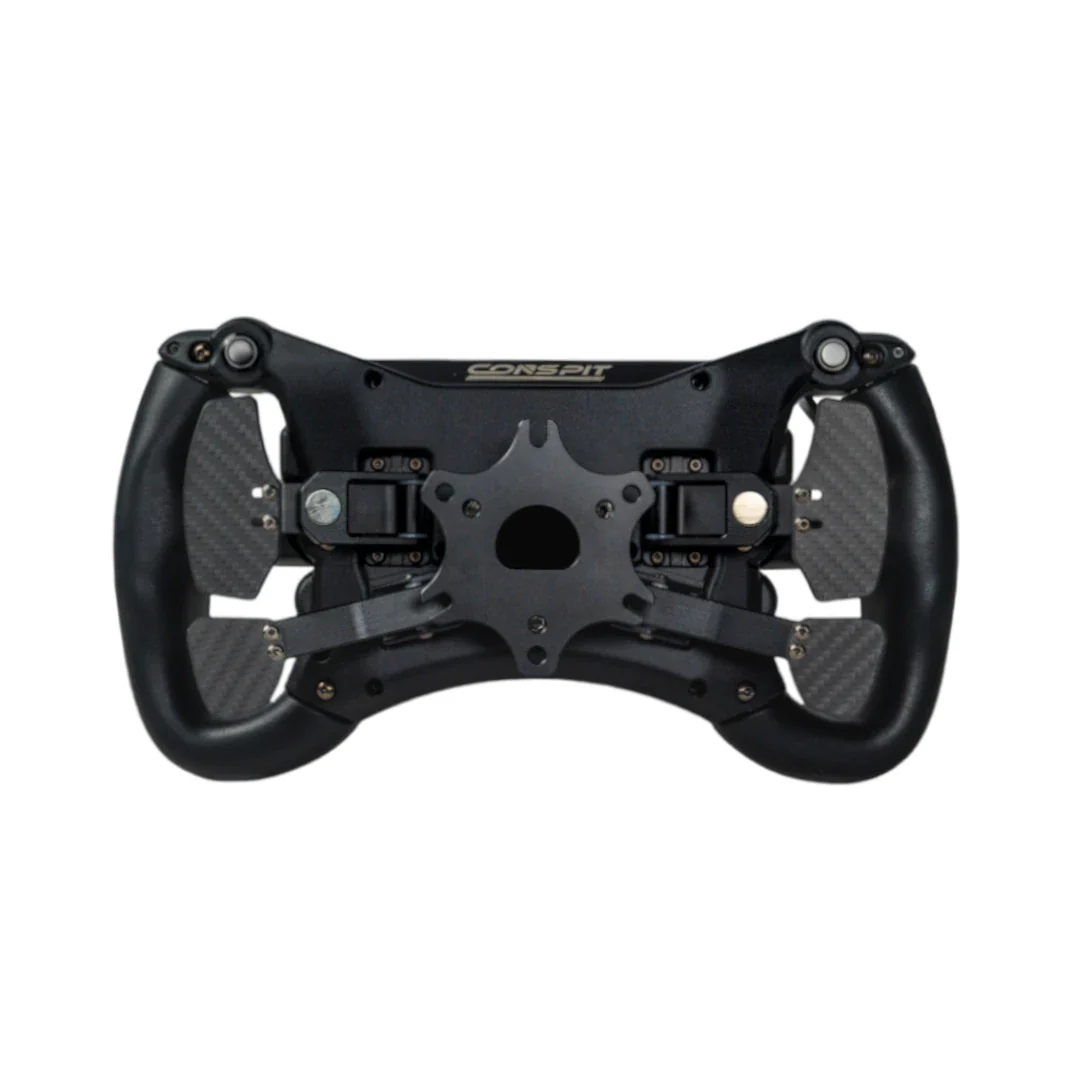

• Quick-Con system for universal compatibility with standard 70mm PCD mounting holes and military-grade quick connectors.

TECHNICAL SPECIFICATIONS

• Weight: 1150g (excluding QR)
• Display: 2.99″ 800×268 colors
• RGB Buttons: 8 ErgoTouch modules
• Encoders: 4 knobs
• Rotary Switches: 3
• 7-way Joysticks: 2
• Clutch Paddles: 2 modular with Hall sensors
• Gear Paddles: Silent magnetic with Hall sensors
• Connection: PC, direct USB
• Software: CONSPIT LINK 2.0
