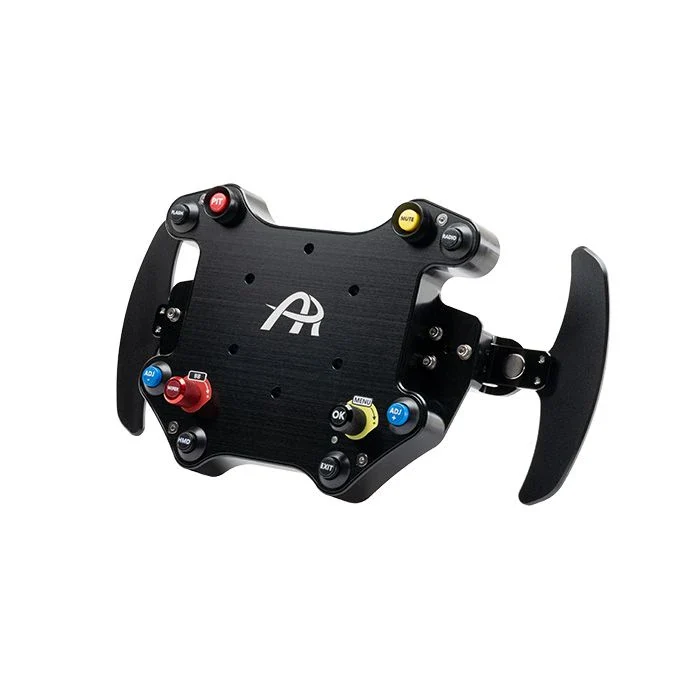

Ascher Racing B16L USB Wheel Hub

The B16L-USB Button Box / Steering Wheel Plate from Ascher Racing combined with your choice of steering wheel, creates a complete Sim Racing steering wheel set up which is compatible with any any platform via a USB connection.

Included Items:

• B16L USB Wheel Hub

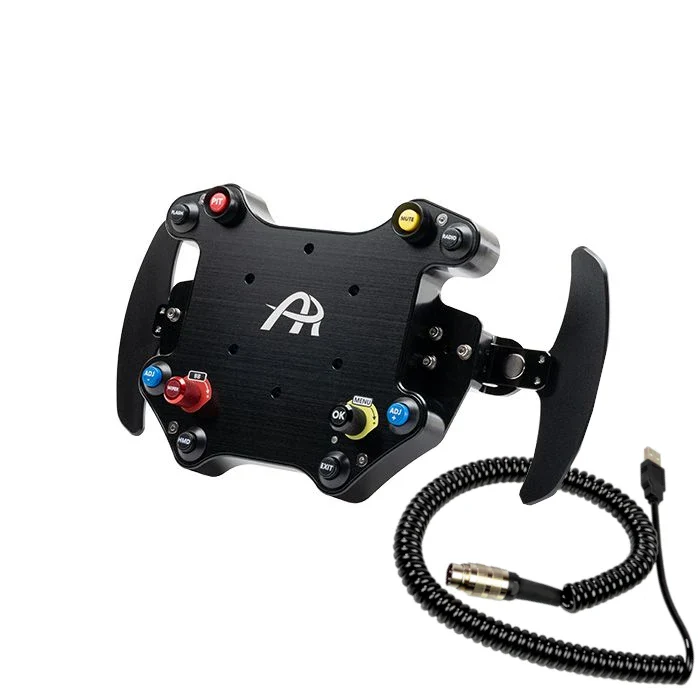

• robust, shielded coiled cable with industrial Binder M16 connector

Quick Release not included.

16 Inputs

• 8 x push buttons with positive tactile feeling
• 2 x protective button guards
• 2 x encoders inc. push button functionality, aluminium knobs
• 2 x paddle shifters

High Quality Finish

• Machined out of automotive aluminium
• Black anodised and laser engraved
• Brushed frontplate surface finish
• Glass bed blasted paddle surface finish

Magnetic Paddle Shifters

• CNC machined and anodised out of automotive aluminium
• Strong snap-action force
• Alternative magnets to reduce force included
• Extremely durable automotive switch

Button Labels

• 50 pcs button labels each black and white
• 72 pcs encoder labels (blue, green, red, black, yellow, white)
• Labels for various common steering wheel inputs

General Information

• 6 x 70 mm bolt pattern
• M5 x 40 mm screws, nuts and washers to mount Q1R included
• Quick Release not included
• Weight: 1000g, Dimensions: 280 × 220 × 80mm

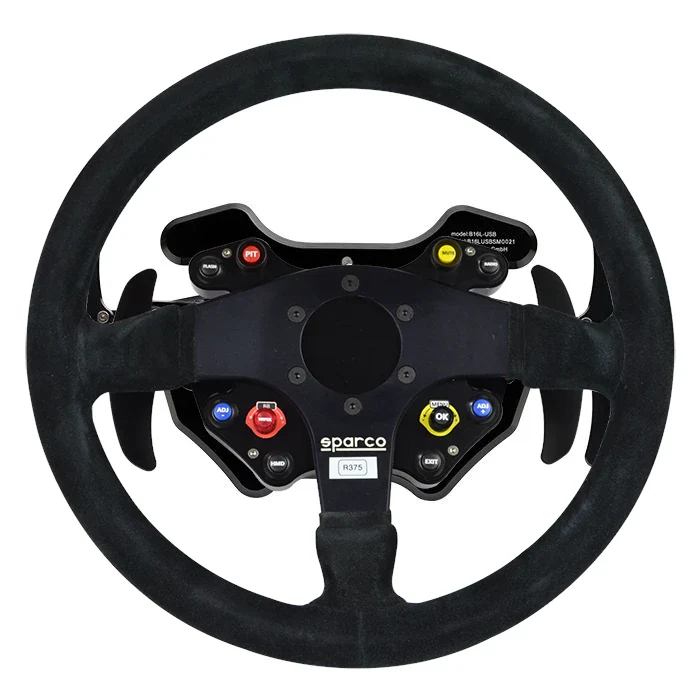

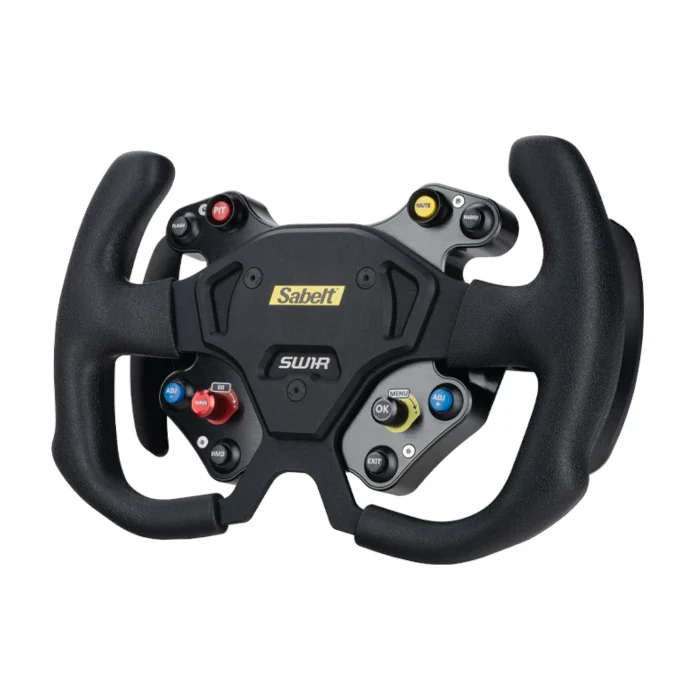

Compatible Steering Wheels (to be ordered separately).

• MOMO: Competition Evo, Jet, Model 30, Model 31, Team 300, Top Power D30
• OMP: Asso, Kubic, Suerleggero, Superquadro, Superturismo, Velocita
• SPARCO: L999, Lap 5, Mugello, 300, 353
• SABELT: SW-733
• SPORTLINE: Competition, Imola, Racing 32P
• TURN: R20
• OTHER: Fanatec GT, Motamec D shape, MPI GT13, Porsche 911 GT3 Cup, RMD 320

2 Year manufacturer warranty

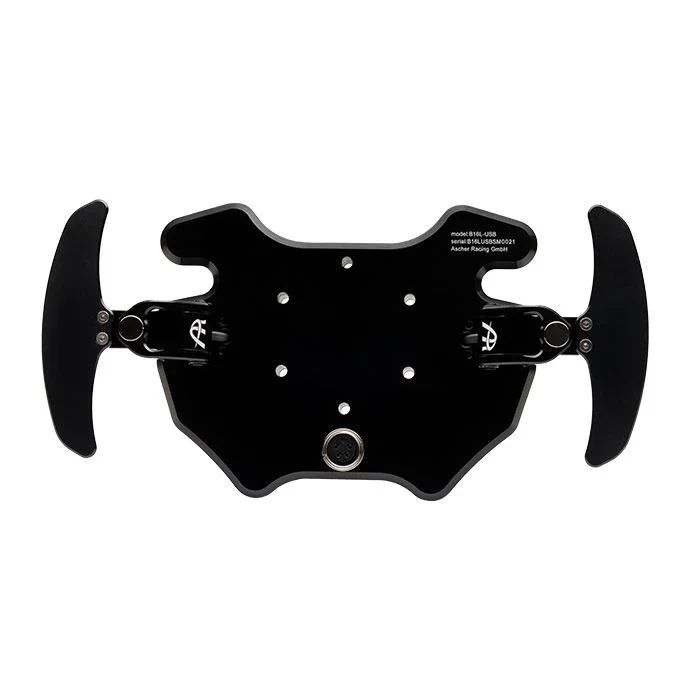

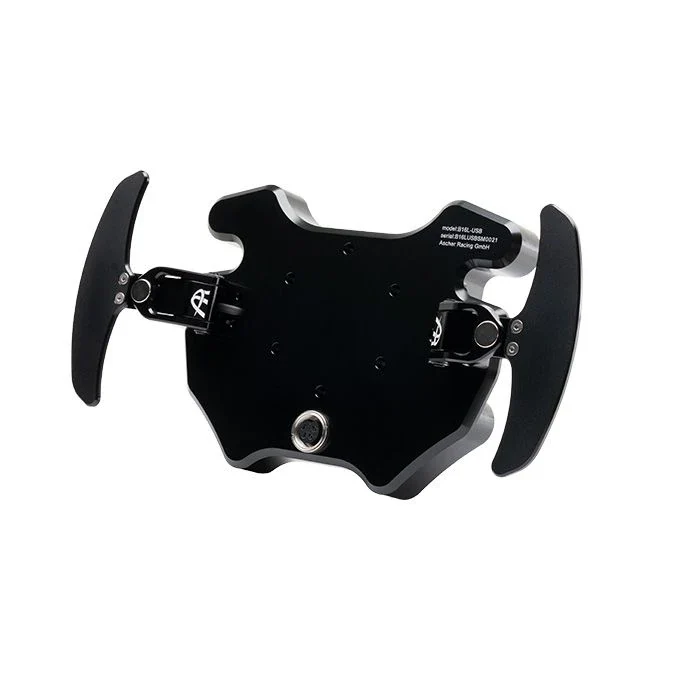

Various quick-release adapters ("snap-off" hubs; 6 x 70 mm bolt circle) can be mounted through holes on the back of the aluminum steering wheel plate, allowing you to use your Ascher Racing B16L USB Buttonplate on numerous wheel bases.

• Simucube 2 und 1
• Accuforce
• Leo Bodnar
• OSW (Argon)
• Simagic
• VRS Direct Force
• Fanatec Podium Hub

Your steering wheel, your configuration

You can configure the 16 inputs (8x push buttons, 2x encoders with push button functionality and the 2x push buttons enclosed with button guards) yourself and assign functions to your racing title. You can also adjust the shift paddles.

Precise shifting

On the B16L USB buttonplate we mount our shift paddles, which have which are used in real motorsport. The paddles are milled from aluminum and the positioning can be changed. You can also adjust the resistance of the paddles using different spacers and included magnets.
